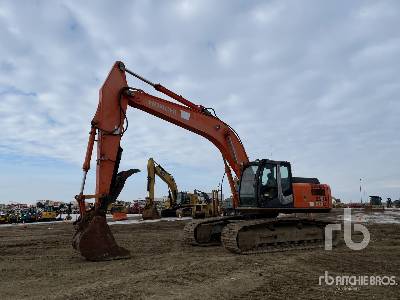

Hitachi ZX270 Hydraulic Excavator
Units
Dimensions
Boom/Stick Option (Hex) 1
A
Shipping Length Of Unit
34.03ft in
C
Shipping Height Of Unit
11.23ft in
I
Max Cutting Height
31.63ft in
J
Max Loading Height
22.15ft in
K
Max Reach Along Ground
32.35ft in
L
Max Vertical Wall Digging Depth
17.33ft in
M
Max Digging Depth
21.46ft in
Boom/Stick Option (Hex) 1
boom 6000mm w/ stick 2400mm
Boom/Stick Option (Hex) 2
A
Shipping Length Of Unit
33.76ft in
I
Max Cutting Height
32.75ft in
C
Shipping Height Of Unit
10.41ft in
J
Max Loading Height
23.2ft in
K
Max Reach Along Ground
34.52ft in
L
Max Vertical Wall Digging Depth
20.05ft in
M
Max Digging Depth
23.73ft in
Boom/Stick Option (Hex) 2
boom 6000mm w/ stick 3100mm
Boom/Stick Option (Hex) 3
A
Shipping Length Of Unit
33.93ft in
I
Max Cutting Height
33.31ft in
J
Max Loading Height
23.79ft in
C
Shipping Height Of Unit
11ft in
K
Max Reach Along Ground
36.39ft in
L
Max Vertical Wall Digging Depth
21.86ft in
M
Max Digging Depth
25.86ft in
Boom/Stick Option (Hex) 3
boom 6000mm w/ stick 3750mm
Dimensions
E
Ground Clearance
1.68ft in
G
Height To Top Of Cab
10.21ft in
B
Width To Outside Of Tracks
10.47ft in
D
Length Of Track On Ground
12.24ft in
H
Tail Swing Radius
9.65ft in
Removal Counterweight Clearance
3.88ft in
Undercarriage
F
Track Gauge
8.5ft in
N
Shoe Size
23.63in
Number Of Track Rollers Per Side
8
Number Of Carrier Rollers Per Side
2
Max Travel Speed
3.05mph
Ground Pressure
7.98psi
Number Of Shoes Per Side
45
Specifications
Engine
Number Of Cylinders
6
Engine Make
2353
Engine Model
AA-6BGIT
Net Power
173hp
Power Measured @
2150rpm
Max Torque
469.9lb ft
Displacement
396.3cu in
Aspiration
turbocharged, intercooled
Torque Measured @
1800rpm
Operational
Operating Weight
59524.9lb
Fuel Capacity
100.4gal
Cooling System Fluid Capacity
6.1gal
Hydraulic System Fluid Capacity
81.2gal
Operating Voltage
24V
Engine Oil Capacity
6.7gal
Swing Drive Fluid Capacity
4.5gal
Alternator Supplied Amperage
50amps
Hydraulic System Relief Valve Pressure
5050psi
Hydraulic Pump Flow Capacity
110.5gal/min
Swing Mechanism
Swing Speed
10.6rpm
Buckets
Reference Bucket Capacity
1.5yd3
Minimum Bucket Capacity
1.1yd3
Maximum Bucket Capacity
1.9yd3
