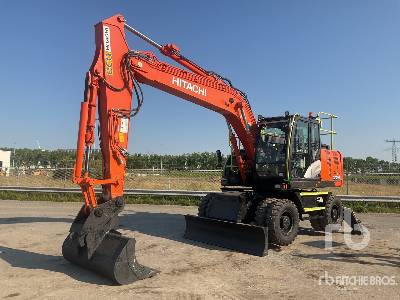

Hitachi ZX190W-3 Mobile Excavator

Mobile Excavator
Mobile Excavator
Mobile Excavator
Mobile Excavator
Mobile Excavator
Mobile Excavator
Units

Dimensions

Boom/Stick Option (MEX) 1

A

Shipping Length of Unit

29.53 ft in

C

Shipping Height of Unit

10.34 ft in

I

Max Cutting Height

30.06 ft in

J

Max Loading Height

20.81 ft in

K

Max Reach Along Ground

29.66 ft in

L

Max Vertical Wall Dig Depth

15.79 ft in

M

Max Digging Depth

17.69 ft in

Boom/Stick Option (MEX) 2

A

Shipping Length of Unit

29.47 ft in

C

Shipping Height of Unit

10.27 ft in

I

Max Cutting Height

30.35 ft in

J

Max Loading Height

21.17 ft in

K

Max Reach Along Ground

30.84 ft in

L

Max Vertical Wall Dig Depth

17.26 ft in

M

Max Digging Depth

19.13 ft in

Boom/Stick Option (MEX) 3

A

Shipping Length of Unit

29.47 ft in

C

Shipping Height of Unit

11.16 ft in

I

Max Cutting Height

31.6 ft in

J

Max Loading Height

22.28 ft in

K

Max Reach Along Ground

32.55 ft in

L

Max Vertical Wall Dig Depth

18.87 ft in

M

Max Digging Depth

20.77 ft in

Dimensions

B

Overall Width

8.37 in

D

Wheelbase

8.7 ft in

E

Ground Clearance

1.15 ft in

F

Overall Width - Outriggers Down

11.29 ft in

G

Height to Top of Cab

10.27 ft in

H

Tail Swing Radius

7.62 ft in

N

Upper Structure Clearance

4.06 ft in


Specifications

Engine

Number of Cylinders

4

Engine Make

2353

Engine Model

AI-4HK1X

Net Power

159.5 hp

Power Measured @

2000 rpm

Displacement

316.9 cu in

Torque Measured @

1500 rpm

Net Torque

483.2 lb ft

Emission level

Tier 3

Aspiration

Turbocharged, intercooled

Operational

Fuel Capacity

76.7 gal

Operating Weight

44029 lb

Cooling System Fluid Capacity

5.9 gal

Engine Oil Capacity

6.1 gal

Front Diff Fluid Capacity

2.6 gal

Rear Diff Fluid Capacity

3.7 gal

Hydraulic System Fluid Capacity

63.5 gal

Operational Voltage

24 V

Hydraulic System Relief Valve Pressure

4974.8 psi

Hydraulic Pump Type

2 variable displacement axial piston pumps

Hydraulic Pump Flow Capacity

99.9 gal/min

Oscillating Axle Angle

14 degrees

Transmission

Transmission Type

2 speed power shift transmission and variable displacement axial piston type travel motor

Number of Forward Gears

2

Number of Reverse Gears

2

Max Travel Speed

21.8 mph

Swing Mechanism

Swing Speed

12.2 rpm

Buckets

Reference Bucket Capacity

1 yd3

Minimum Bucket Capacity

0.7 yd3

Maximum Bucket Capacity

1.6 yd3

Boom/Stick Option (MEX) 1

Boom/Stick Option (MEX) 1

Stick 2260mm

Shipping Height of Unit

10.4 ft in

Shipping Length of Unit

29.6 ft in

Max Digging Depth

17.7 ft in

Max Reach Along Ground

29.7 ft in

Max Cutting Height

30.1 ft in

Max Loading Height

20.9 ft in

Max Vertical Wall Dig Depth

15.8 ft in

Boom/Stick Option (MEX) 2

Boom/Stick Option (MEX) 2

Stick 2710mm

Shipping Height of Unit

10.3 ft in

Shipping Length of Unit

29.5 ft in

Max Digging Depth

19.2 ft in

Max Reach Along Ground

30.9 ft in

Max Cutting Height

30.4 ft in

Max Loading Height

21.2 ft in

Max Vertical Wall Dig Depth

17.3 ft in

Boom/Stick Option (MEX) 3

Boom/Stick Option (MEX) 3

Stick 3210mm

Shipping Height of Unit

11.2 ft in

Shipping Length of Unit

29.5 ft in

Max Digging Depth

20.8 ft in

Max Reach Along Ground

32.6 ft in

Max Cutting Height

31.6 ft in

Max Loading Height

22.3 ft in

Max Vertical Wall Dig Depth

18.9 ft in

Dimensions

Overall Width

8.4 in

Overall Width - Outriggers Down

11.3 ft in

Height to Top of Cab

10.3 ft in

Wheelbase

8.7 ft in

Ground Clearance

1.2 ft in

Tail Swing Radius

7.7 ft in

Upper Structure Clearance

4.1 ft in
