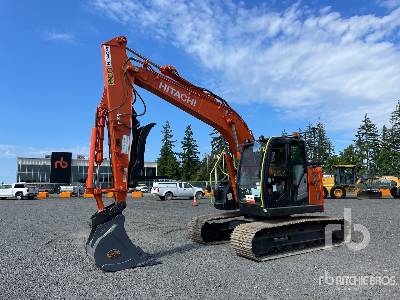

Hitachi ZX135US Hydraulic Excavator

Hitachi ZX135US Hydraulic Excavator Specs front
Hitachi ZX135US Hydraulic Excavator Specs front
Hitachi ZX135US Hydraulic Excavator Specs side
Hitachi ZX135US Hydraulic Excavator Specs side
Hitachi ZX135US Hydraulic Excavator Specs extended
Hitachi ZX135US Hydraulic Excavator Specs extended
Units

Dimensions

Boom/Stick Option (HEX) 1

A

Shipping Length of Unit

23.92 ft in

C

Shipping Height of Unit

9.32 ft in

I

Max Cutting Height

30.25 ft in

J

Max Loading Height

22.18 ft in

K

Max Reach Along Ground

26.78 ft in

L

Max Vertical Wall Digging Depth

16.31 ft in

M

Max Digging Depth

18.15 ft in

Boom/Stick Option (HEX) 2

A

Shipping Length of Unit

23.99 ft in

C

Shipping Height of Unit

9.32 ft in

I

Max Cutting Height

31.53 ft in

J

Max Loading Height

23.46 ft in

K

Max Reach Along Ground

28.35 ft in

L

Max Vertical Wall Digging Depth

17.92 ft in

M

Max Digging Depth

19.76 ft in

Dimensions

B

Width to Outside of Tracks

8.83 ft in

D

Length of Track on Ground

9.45 ft in

E

Ground Clearance

1.45 ft in

G

Height to Top of Cab

8.99 ft in

H

Tail Swing Radius

4.81 ft in

Undercarriage

F

Track Gauge

6.53 ft in

N

Shoe Size

27.56 in


Specifications

Engine

Number of Cylinders

4

Engine Make

2353

Engine Model

CC-4BG1TC

Net Power

88 hp

Power Measured @

2150 rpm

Displacement

264 cu in

Max Torque

250.8 lb ft

Torque Measured @

1600 rpm

Aspiration

Turbocharged, intercooled

Operational

Operating Weight

30440 lb

Fuel Capacity

53.1 gal

Cooling System Fluid Capacity

3.8 gal

Hydraulic System Fluid Capacity

31.8 gal

Engine Oil Capacity

3.5 gal

Swing Drive Fluid Capacity

0.7 gal

Operating Voltage

24 V

Alternator Supplied Amperage

50 amps

Hydraulic System Relief Valve Pressure

4980 psi

Hydraulic Pump Flow Capacity

55.5 gal/min

Swing Mechanism

Swing Speed

13.7 rpm

Swing Torque

24387 lb ft

Undercarriage

Number of Shoes per Side

44

Shoe Size

27.6 in

Number of Carrier Rollers per Side

1

Number of Track Rollers per Side

7

Ground Pressure

4.5 psi

Max Travel Speed

3.2 mph

Drawbar Pull

26300 lb

Track Gauge

6.6 ft in

Buckets

Reference Bucket Capacity

0.7 yd3

Minimum Bucket Capacity

0.3 yd3

Maximum Bucket Capacity

0.8 yd3

Boom/Stick Option (HEX) 1

Boom/Stick Option (HEX) 1

boom 15ft 1in (4600mm) Stick 8\\\'3\\\" (2520mm)

Shipping Height of Unit

9.4 ft in

Shipping Length of Unit

24 ft in

Max Digging Depth

18.2 ft in

Max Reach Along Ground

26.8 ft in

Max Cutting Height

30.3 ft in

Max Loading Height

22.2 ft in

Max Vertical Wall Digging Depth

16.4 ft in

Boom/Stick Option (HEX) 2

Boom/Stick Option (HEX) 2

boom 15ft 1in (4600mm) Stick 9\\\'11\\\" (3010mm)

Shipping Height of Unit

9.4 ft in

Shipping Length of Unit

24 ft in

Max Digging Depth

19.8 ft in

Max Reach Along Ground

28.4 ft in

Max Cutting Height

31.6 ft in

Max Loading Height

23.5 ft in

Max Vertical Wall Digging Depth

18 ft in

Dimensions

Width to Outside of Tracks

8.9 ft in

Height to Top of Cab

9 ft in

Ground Clearance

1.5 ft in

Removal Counterweight Clearance

3 ft in

Tail Swing Radius

4.9 ft in

Length of Track on Ground

9.5 ft in


Compare similar models

Manufacturer / Model

Net Power

Operating Weight

Reference Bucket Capacity

Net Power

98.6 hp

Operating Weight

31812.8 lb

Reference Bucket Capacity

0.7 yd3

Net Power

88 hp

Operating Weight

30441.5 lb

Reference Bucket Capacity

0.9 yd3

Net Power

93 hp

Operating Weight

33400.1 lb

Reference Bucket Capacity

0.6 yd3
