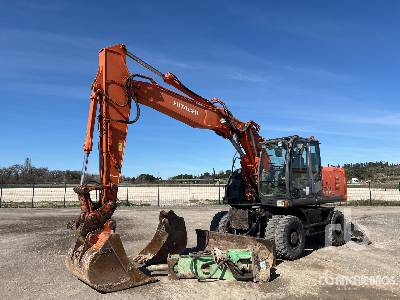

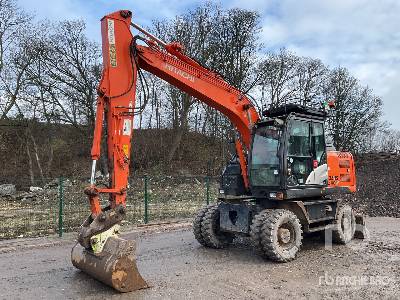

Hitachi ZX130W Mobile Excavator

Hitachi ZX130W Mobile Excavator Specs front
Hitachi ZX130W Mobile Excavator Specs front
Hitachi ZX130W Mobile Excavator Specs side
Hitachi ZX130W Mobile Excavator Specs side
Hitachi ZX130W Mobile Excavator Specs extended
Hitachi ZX130W Mobile Excavator Specs extended
Units

Dimensions

Boom/Stick Option (MEX) 1

A

Shipping Length of Unit

27.7 ft in

C

Shipping Height of Unit

9.95 ft in

I

Max Cutting Height

28.32 ft in

J

Max Loading Height

20.41 ft in

K

Max Reach Along Ground

25.73 ft in

L

Max Vertical Wall Dig Depth

13.59 ft in

M

Max Digging Depth

15.2 ft in

Boom/Stick Option (MEX) 2

A

Shipping Length of Unit

27.79 ft in

C

Shipping Height of Unit

9.95 ft in

I

Max Cutting Height

28.91 ft in

J

Max Loading Height

21.04 ft in

K

Max Reach Along Ground

26.94 ft in

L

Max Vertical Wall Dig Depth

14.9 ft in

M

Max Digging Depth

16.57 ft in

Boom/Stick Option (MEX) 3

A

Shipping Length of Unit

27.7 ft in

C

Shipping Height of Unit

10.93 ft in

I

Max Cutting Height

29.96 ft in

J

Max Loading Height

22.09 ft in

K

Max Reach Along Ground

28.52 ft in

L

Max Vertical Wall Dig Depth

16.47 ft in

M

Max Digging Depth

18.18 ft in

Dimensions

B

Overall Width

8.31 in

D

Wheelbase

8.37 ft in

E

Ground Clearance

1.19 ft in

F

Overall Width - Outriggers Down

11.72 ft in

G

Height to Top of Cab

9.95 ft in

H

Tail Swing Radius

6.5 ft in

N

Upper Structure Clearance

3.99 ft in


Specifications

Engine

Number of Cylinders

4

Engine Make

2353

Engine Model

4BG1XABF

Net Power

117 hp

Power Measured @

2200 rpm

Displacement

264.2 cu in

Torque Measured @

1800 rpm

Net Torque

322.4 lb ft

Aspiration

turbocharged, intercooled

Operational

Fuel Capacity

66.1 gal

Operating Weight

32848.9 lb

Cooling System Fluid Capacity

5.1 gal

Engine Oil Capacity

4.2 gal

Front Diff Fluid Capacity

2.2 gal

Rear Diff Fluid Capacity

2.4 gal

Hydraulic System Fluid Capacity

47.6 gal

Operational Voltage

24 V

Hydraulic System Relief Valve Pressure

4980 psi

Hydraulic Pump Type

2 variable displacement axial piston pumps

Hydraulic Pump Flow Capacity

93 gal/min

Oscillating Axle Angle

12 degrees

Swing Mechanism

Swing Speed

13.1 rpm

Transmission

Transmission Type

2 gear power shift

Number of Forward Gears

2

Number of Reverse Gears

2

Max Travel Speed

21.2 mph

Boom/Stick Option (MEX) 1

Boom/Stick Option (MEX) 1

boom w/ stick 2100mm

Shipping Height of Unit

10 ft in

Shipping Length of Unit

27.7 ft in

Max Digging Depth

15.2 ft in

Max Reach Along Ground

25.8 ft in

Max Cutting Height

28.4 ft in

Max Loading Height

20.5 ft in

Max Vertical Wall Dig Depth

13.6 ft in

Boom/Stick Option (MEX) 2

Boom/Stick Option (MEX) 2

boom w/ stick 2520mm

Shipping Height of Unit

10 ft in

Shipping Length of Unit

27.8 ft in

Max Digging Depth

16.6 ft in

Max Reach Along Ground

27 ft in

Max Cutting Height

29 ft in

Max Loading Height

21.1 ft in

Max Vertical Wall Dig Depth

14.9 ft in

Boom/Stick Option (MEX) 3

Boom/Stick Option (MEX) 3

boom w/ stick 3010mm

Shipping Height of Unit

11 ft in

Shipping Length of Unit

27.7 ft in

Max Digging Depth

18.2 ft in

Max Reach Along Ground

28.6 ft in

Max Cutting Height

30 ft in

Max Loading Height

22.1 ft in

Max Vertical Wall Dig Depth

16.5 ft in

Dimensions

Overall Width

8.4 in

Overall Width - Outriggers Down

11.8 ft in

Height to Top of Cab

10 ft in

Wheelbase

8.4 ft in

Ground Clearance

1.2 ft in

Upper Structure Clearance

4 ft in

Tail Swing Radius

6.5 ft in
