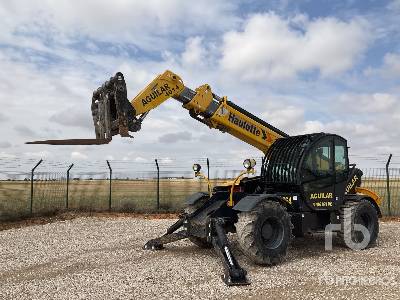

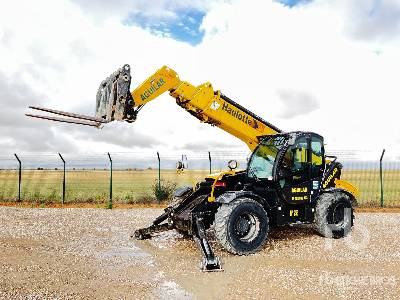

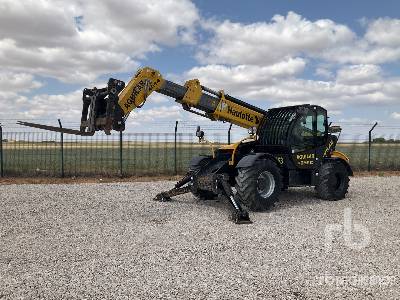

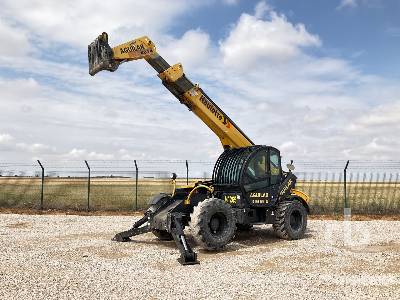

Haulotte HTL9045 Telescopic Forklift
Units
Dimensions
Dimensions
E
Ground Clearance
1.64ft in
D
Wheelbase
9.6ft in
Height
103.2in
Max Fork Height
44.7ft in
Approach Angle
29degrees
Cab Width
3.2ft in
Overall Track Width
6.4ft in
Reach At Maximum Fork Height
4.12ft in
Turning Radius Outside Tires
14.9ft in
Width
8ft in
Overall Length
21.2ft in
Lift
G
Max Forward Reach
32.21ft in
Max Lift Capacity
8820lb
Max Load At Max Height
6615lb
Max Load At Max Reach
2205lb
Specifications
Engine
Emission Tier Level
TIER IV FINAL
Engine Model
KOHLER TIER IV
Gross Power
74.3hp
Power Measured @
2200rpm
Max Torque
276.6lb ft
Torque Measured @
1400rpm
Displacement
207cu in
Operational
Operating Weight
22976lb
Fuel Capacity
34.3gal
Engine Oil Capacity
3.9gal
Tire Size
400/80-24
Transmission
Transmission Type
Hydrostatic
