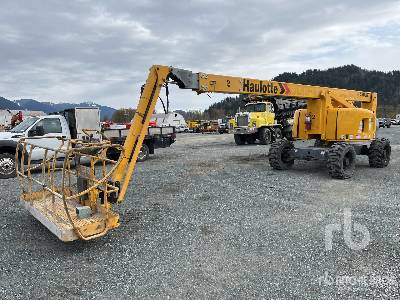

Haulotte HA32 CJ PLUS Boom Lift
Units
Dimensions
Dimensions
A
Overall Length
223.2in
B
Overall Width
3.11ft in
D
Wheelbase
5.5ft in
E
Ground Clearance
5in
Tilt Alarm
3degrees
Transport Height
103.2in
Transport Length
166.8in
Turning Radius - Outside
12ft in
Turntable Rotation
355degrees
Gradeability
25%
Overall Height
6.6ft in
Platform
F
Max Platform Height
31.9ft in
G
Max Horizontal Reach
24.1ft in
Platform Inner Length
46.8in
Max Platform Weight Capacity
500lb
Max Working Height
37.9ft in
Jib Range Of Motion - Horizontal
180degrees
Jib Range Of Motion - Vertical
132.2degrees
Platform Inner Width
32.4in
Platform Rotation
180degrees
Specifications
Engine
System Voltage
48V
Battery Amp Hours
320
Operational
Operating Weight
15678lb
Hydraulic System Fluid Capacity
4gal
Max Speed
3.7mph
Tire Size
23.5x7.5
