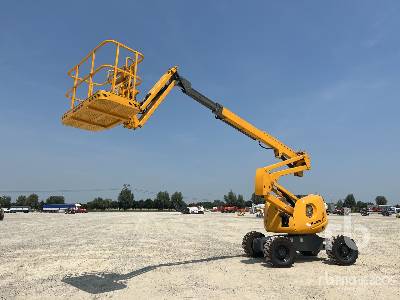

Haulotte HA18SPX Boom Lift

Boom Lift
Boom Lift
Boom Lift
Boom Lift
Boom Lift
Boom Lift
Units

Dimensions

Dimensions

A

Overall Length

24.61in

B

Overall Width

7.39ft in

C

Overall Height - mast lowered

7.22ft in

D

Wheelbase

6.57ft in

E

Ground Clearance

14.97in

Platform

F

Max Platform Height

50.2ft in

G

Max Horizontal Reach

34.78ft in


Specifications

Engine

Engine Make

2349

Gross Power

41.6hp

Fuel Type

Diesel

Operational

Operating Weight

17526.8lb

Fuel Capacity

14.6gal

Hydraulic System Fluid Capacity

26.5gal

Max Speed

3.5mph

Tire Size

350-14-17.5

Tire Fill/Type

foam filled

Platform

Max Working Height

56.8ft in

Max Platform Height

50.2ft in

Max Horizontal Reach

34.8ft in

Max Platform Weight Capacity

507.1lb

Platform Inner Length

70.9in

Platform Inner Width

31.5in

Lift Time

45sec

Platform Rotation

180degrees

Dimensions

Wheelbase

6.6ft in

Overall Length

24.7in

Overall Width

7.4ft in

Overall Height - mast lowered

7.3ft in

Turning Radius

13.2ft in

Ground Clearance

15in
