Haulotte HA16PX Boom Lift

Boom Lift
Boom Lift
Boom Lift
Boom Lift
Boom Lift
Boom Lift
Units

Dimensions

Dimensions

A

Overall Length

23.46in

B

Overall Width

7.55ft in

C

Overall Height - mast lowered

7.22ft in

D

Wheelbase

6.57ft in

E

Ground Clearance

15.75in

Platform

F

Max Platform Height

45.94ft in

G

Max Horizontal Reach

29.86ft in


Specifications

Engine

Engine Make

2349

Gross Power

41.6hp

Fuel Type

Diesel

Operational

Operating Weight

15432.4lb

Fuel Capacity

19.1gal

Hydraulic System Fluid Capacity

26.5gal

Max Speed

3.5mph

Tire Size

385/65-22.5

Tire Fill/Type

foam filled

Platform

Max Working Height

52.5ft in

Max Platform Height

46ft in

Max Horizontal Reach

29.9ft in

Max Platform Weight Capacity

507.1lb

Platform Inner Length

70.9in

Platform Inner Width

31.5in

Lift Time

43sec

Platform Rotation

180degrees

Dimensions

Wheelbase

6.6ft in

Overall Length

23.5in

Overall Width

7.6ft in

Overall Height - mast lowered

7.3ft in

Turning Radius

12.4ft in

Ground Clearance

15.8in

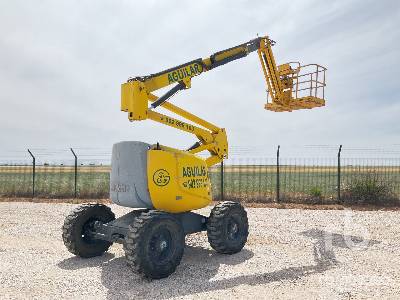

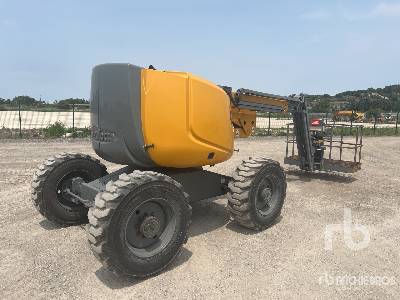

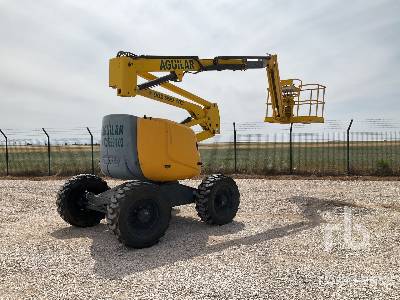

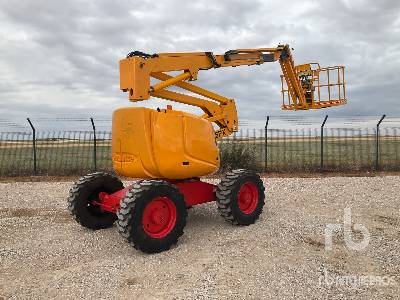

Compare similar models
