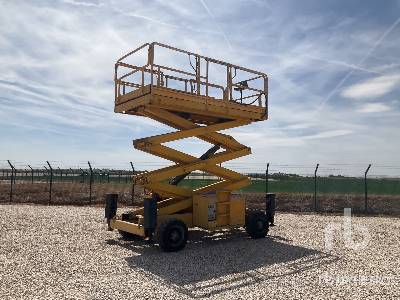

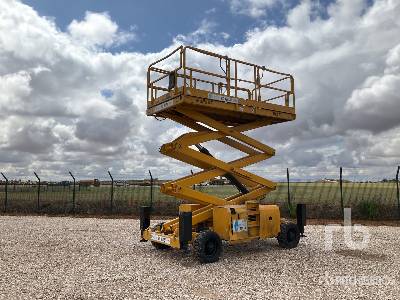

Haulotte H12SX Scissor Lift
Units
Dimensions
Dimensions
A
Overall Length
13.72in
D
Wheelbase
9.03ft in
B
Overall Width
7.39ft in
C
Height W/ Rails
8.44ft in
E
Ground Clearance
10.63in
Height W/O Rails
5.62ft in
Turning Radius
19.36ft in
Platform
F
Max Platform Height
32.81ft in
I
Deck Extension
39.38in
Max Working Height
39.38ft in
Max Platform Weight Capacity
1543.24lb
Platform Inner Length
153.94in
Platform Inner Width
71.26in
Lower Time
65sec
Lift Time
43sec
Specifications
Engine
Gross Power
32.2hp
Fuel Type
diesel
Operational
Operating Weight
12147.5lb
Fuel Capacity
17.2gal
Hydraulic System Fluid Capacity
26.5gal
Max Speed
3.8mph
Tire Size
10 x 16.5
Tire Fill/Type
foam filled
