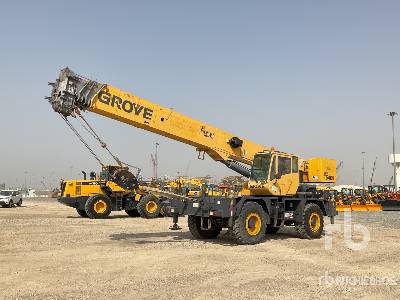

Grove RT9150E Rough Terrain Crane
Units
Dimensions
Boom
I
Min Height @ Max Raise Angle
42.33ft in
J
Max Height @ Max Raise Angle - No Jib
196.86ft in
K
Min Operating Radius
10ft in
M
Max Elevating Angle
78degrees
L
Max Operating Radius
140ft in
Number Of Sections
5
Max Lift Capacity
260000lb
Swing Speed
1.5rpm
Dimensions
A
Transport Length
1.87ft in
B
Transport Width
16.21ft in
C
Transport Height
2.15ft in
D
Wheelbase
194.49in
Gradeability
70%
Specifications
Engine
Engine Make
2347
Engine Model
QSC8.3L diesel
Gross Power
320.6hp
Power Measured @
2200rpm
Max Torque
1020.1lb ft
Torque Measured @
1600rpm
Displacement
506.5cu in
Operational
Operating Weight
174034lb
Fuel Capacity
100.2gal
Hydraulic System Fluid Capacity
325gal
Operating Voltage
12V
Tire Size
33.25x29-38bias
Transmission
Transmission Type
full powershift
Number Of Forward Gears
6
Number Of Reverse Gears
3
Max Speed - Forward
15mph
Weights
Counterweight
3900lb
Hydraulic System
Max Operating Pressure
4000 Psi
