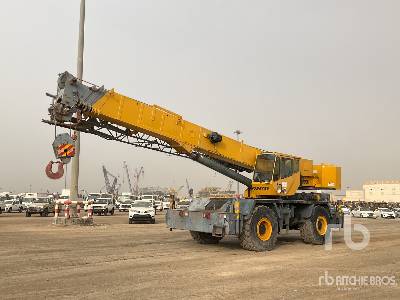

Grove RT530E Rough Terrain Crane

Rough Terrain Crane
Rough Terrain Crane
Rough Terrain Crane
Rough Terrain Crane
Rough Terrain Crane
Rough Terrain Crane
Units

Dimensions

Boom

I

Min Height @ Max Raise Angle

29ft in

J

Max Height @ Max Raise Angle - no jib

95ft in

K

Min Operating Radius

10ft in

L

Max Operating Radius

85ft in

M

Max Elevating Angle

76degrees

Dimensions

A

Transport Length

35.12ft in

B

Transport Width

8.5ft in

C

Transport Height

11.7ft in

D

Wheelbase

11.09in

E

Ground Clearance

0.02ft in

F

Width w/ Outriggers Extended

20ft in

G

Carrier/Base Length

22.53ft in

H

Upper Structure Tail Swing Radius

11.2ft in


Specifications

Engine

Engine Make

2347

Engine Model

QSB 5.9L

Gross Power

155hp

Power Measured @

2500rpm

Max Torque

440lb ft

Torque Measured @

1500rpm

Displacement

360.1cu in

Aspiration

turbocharged

Operational

Operating Weight

54483lb

Fuel Capacity

58.2gal

Hydraulic System Fluid Capacity

90.1gal

Operating Voltage

24V

Tire Size

20.5X25-24PR

Transmission

Transmission Type

full powershift

Number of Forward Gears

6

Number of Reverse Gears

6

Max Speed - Forward

24.3mph

Boom

Number of Sections

4

Min Height @ Max Raise Angle

29ft in

Max Height @ Max Raise Angle - no jib

95ft in

Max Elevating Angle

76degrees

Swing Speed

2.8rpm

Max Lift Capacity

60000lb

Min Operating Radius

10ft in

Max Operating Radius

85ft in

Dimensions

Transport Length

35.2ft in

Transport Width

8.5ft in

Transport Height

11.7ft in

Ground Clearance

0.1ft in

Wheelbase

11.1in

Width w/ Outriggers Extended

20ft in

Carrier/Base Length

22.6ft in

Upper Structure Tail Swing Radius

11.2ft in
