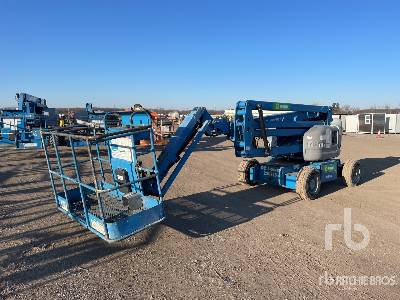

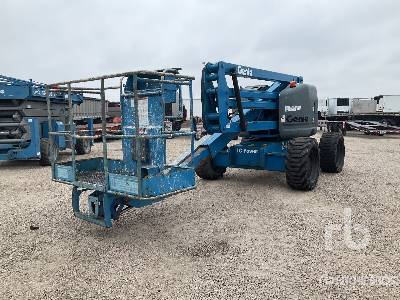

Genie Z51/30JRT Boom Lift

Boom Lift
Boom Lift
Boom Lift
Boom Lift
Boom Lift
Boom Lift
Units

Dimensions

Dimensions

A

Overall Length

24.61in

B

Overall Width

7.52ft in

C

Overall Height - mast lowered

7.09ft in

D

Wheelbase

6.67ft in

E

Ground Clearance

15.36in

Platform

F

Max Platform Height

51.25ft in

G

Max Horizontal Reach

30.35ft in


Specifications

Engine

Engine Make

2380

Engine Model

DSG-423

Gross Power

75hp

Operational

Operating Weight

15902lb

Fuel Capacity

17gal

Hydraulic System Fluid Capacity

23.8gal

Max Speed

5mph

Tire Size

355/55 D625

Tire Fill/Type

Foam

Platform

Max Working Height

57.9ft in

Max Platform Height

51.3ft in

Max Horizontal Reach

30.4ft in

Max Platform Weight Capacity

500.5lb

Platform Inner Length

72.1in

Platform Inner Width

30in

Platform Rotation

180degrees

Dimensions

Wheelbase

6.7ft in

Overall Length

24.7in

Overall Width

7.6ft in

Overall Height - mast lowered

7.1ft in

Turning Radius

14.8ft in

Ground Clearance

15.4in
