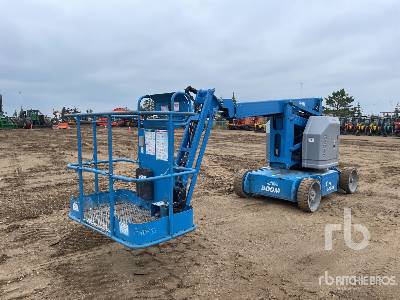

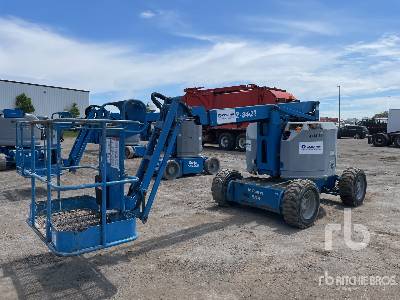

Genie Z34/22 Elec Boom Lift
Units
Dimensions
Dimensions
A
Overall Length
18.51in
B
Overall Width
5.68ft in
C
Overall Height - Mast Lowered
6.57ft in
D
Wheelbase
6.17ft in
E
Ground Clearance
5.91in
Turning Radius
13.06ft in
Platform
F
Max Platform Height
34.52ft in
G
Max Horizontal Reach
22.25ft in
Platform Rotation
180degrees
Platform Inner Length
55.91in
Max Platform Weight Capacity
500.45lb
Max Working Height
41.08ft in
Platform Inner Width
29.93in
Specifications
Engine
Engine Make
0
System Voltage
48V
Number Of Batteries
8
Battery Amp Hours
315
Operational
Operating Weight
11001.1lb
Hydraulic System Fluid Capacity
4gal
Max Speed
4mph
Tire Size
9x14.5
Tire Fill/Type
Solid, non-marking
