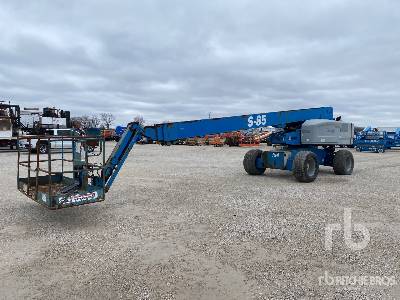

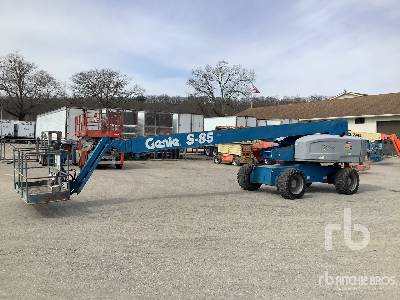

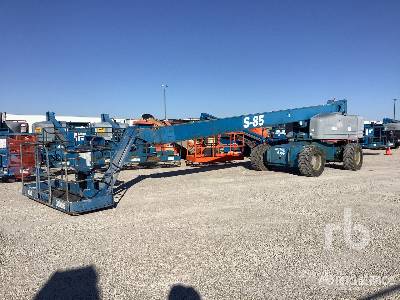

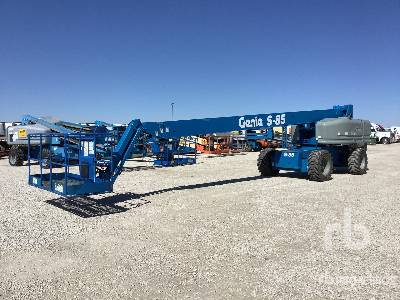

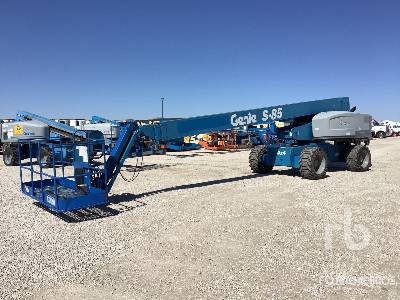

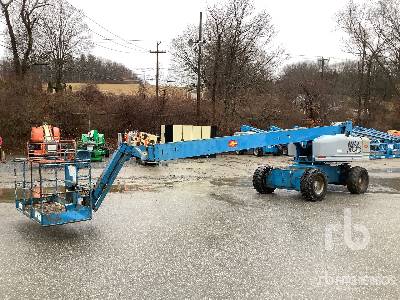

Genie S-85 HF Boom Lift
Units
Dimensions
Dimensions
A
Overall Length
487.01in
B
Overall Width
8.6ft in
D
Wheelbase
9.4ft in
E
Ground Clearance
15.8in
Gradeability
45%
Overall Height
9.2ft in
Weight
38001.08lb
Platform
Platform Rotation
160degrees
Platform Inner Length
35.83in
Platform Inner Width
96.07in
Specifications
Engine
Power
74 hp (55 kW) Deutz turbo diesel, Tier 4i, TD2011L04i
Engine Model
S-85 HF
Capacities
Fuel Tank - Gas
30gal
Max . Lift Capacity - Restricted
1000lb
Max . Lift Capacity - Understricted
600lb
Auxiliary Power Unit
12V DC
Fuel Tank - Diesel
35gal
Hydraulic Tank
40gal
Operational
Drive Speed - Raised
0.5mph
Controls
12V DC proportional
Turning Radius - Axle Outside
21.5ft in
Turning Radius - Axle Inside
12.1ft in
Drive Speed - Stowed
3mph
Below Ground Reach
8.7ft in
Working Height - Maximum
91.1ft in
Horizontal Reach - Maximum
72.6ft in
Platform Height - Maximum
85.1ft in
Tires
Air filled 41/18LL x 22.5, 20 ply
