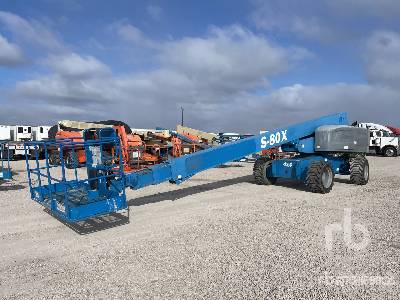

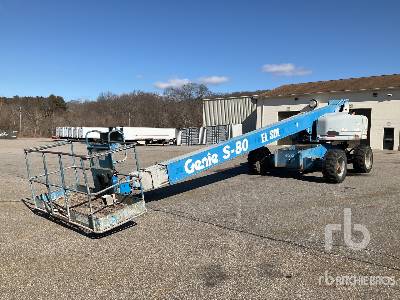

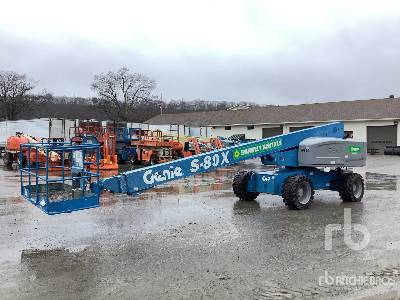

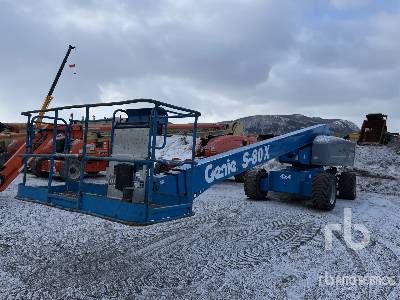

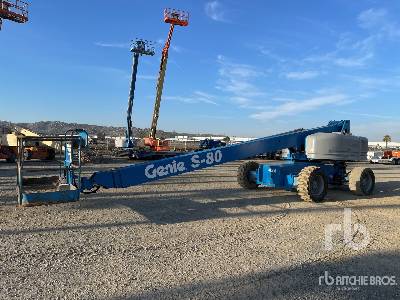

Genie S-80 XC Boom Lift

Boom Lift
Boom Lift
Boom Lift
Boom Lift
Boom Lift
Boom Lift
Units

Dimensions

Dimensions

A

Overall Length

442.13in

B

Overall Width

8.2ft in

D

Wheelbase

9.4ft in

E

Ground Clearance

15.8in

Gradeability

45%

Overall Height

9.2ft in

Weight - 4wd

37000.18lb

Platform

Platform Rotation

160degrees

Platform Inner Length

35.83in

Platform Inner Width

29.93in


Specifications

Engine

Power

74 hp (55 kW) Deutz turbo diesel

Emission Tier Level

Tier 4f

Engine Model

S-80 XC

Capacities

Fuel Tank - Gas

30gal

Max . Lift Capacity - Restricted

1000lb

Max . Lift Capacity - Understricted

660lb

Auxiliary Power Unit

12 V DC

Fuel Tank - Diesel

35gal

Hydraulic Tank

40gal

Operational

Drive Speed - Raised

0.5mph

Controls

12V DC proportional

Turning Radius - Axle Outside

21.5ft in

Turning Radius - Axle Inside

12.1ft in

Drive Speed - Stowed

3mph

Below Ground Reach

5.6ft in

Working Height - Maximum

86.2ft in

Horizontal Reach - Maximum

68.6ft in

Platform Height - Maximum

80ft in

Tires

Foam filled 18-625, 16 ply
