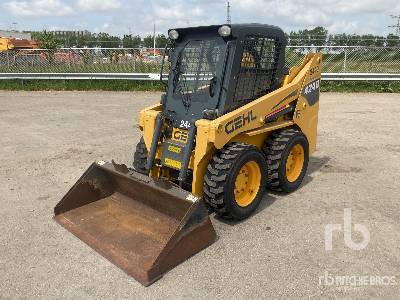

Gehl 3640E Skid Steer Loader

Skid Steer Loader
Skid Steer Loader
Skid Steer Loader
Skid Steer Loader
Skid Steer Loader
Skid Steer Loader
Units

Dimensions

Dimensions

A

Length with Bucket

9.51ft in

B

Width Over Tires

4.04ft in

C

Height to Top of Cab

5.86ft in

D

Wheelbase

2.88ft in

E

Ground Clearance

5.99in

F

Length w/o Bucket

7.41ft in

G

Clearance at Max Lift and Dump

7.05ft in

H

Reach at Max Lift and Dump

22.8in


Specifications

Engine

Engine Make

2348

Engine Model

3TNV88

Net Power

35hp

Power Measured @

2600rpm

Displacement

100.1cu in

Operational

Operational Weight

4000lb

Fuel Capacity

10.3gal

Hydraulic System Fluid Capacity

8.1gal

Max Speed

6.8mph

Tire Size

27x8.5x15 HD

Operating Voltage

12V

Alternator Supplied Amperage

40amps

Loader

Operating Load Rating

1050lb

Tipping Angle

2100degrees

Bucket Capacity

0.5yd3

Hydraulic

Pump Flow Capacity

14.5gal/min

Dimensions

Length with Bucket

9.6ft in

Length w/o Bucket

7.5ft in

Width Over Tires

4.1ft in

Height to Top of Cab

5.9ft in

Clearance at Max Lift and Dump

7.1ft in

Wheelbase

2.9ft in

Ground Clearance

6in

Reach at Max Lift and Dump

22.8in

Turning Radius from Center - machine rear

27.1in

Turning Radius from Center - inc bucket

34.8in


Compare similar models

Manufacturer / Model

Net Power

Operational Weight

Operating Load Rating

Net Power

36 hp

Operational Weight

4400 lb

Operating Load Rating

1050 lb

Net Power

30.2 hp

Operational Weight

3701.6 lb

Operating Load Rating

1000 lb

Net Power

30.9 hp

Operational Weight

3880.2 lb

Operating Load Rating

956.9 lb
`
