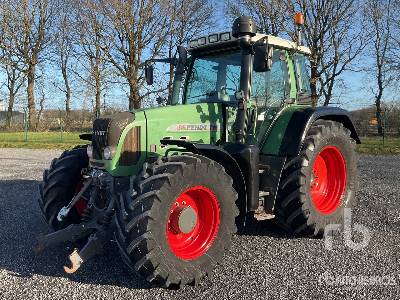

Fendt 716 4WD Tractor

Fendt 716 4WD Tractor Specs front
Fendt 716 4WD Tractor Specs front
Fendt 716 4WD Tractor Specs side
Fendt 716 4WD Tractor Specs side
Fendt 716 4WD Tractor Specs back
Fendt 716 4WD Tractor Specs back
Units

Dimensions

Dimensions

A

Overall Length

205.79 in

B

Width Outside Frame

8.44 ft in

C

Height to Top of Cab

9.84 ft in

D

Wheelbase

109.06 in

E

Ground Clearance

21.74 in


Specifications

Engine

Starter

5.4 hp

Number of Cylinders

6

Engine Model

716

Net Power

144.9 hp

Gross Power

162.3 hp

Power Measured @

2100 rpm

Torque Rise

36 %

Displacement

369.7 cu in

Aspiration

turbocharged, intercooler

Operational

Operating Weight

14561.6 lb

Fuel Capacity

89.9 gal

Alternator Supplied Amperage

200 amps

Operating Voltage

12 V

Transmission

Transmission Type

Stepless Vario transmission

Max Speed

31.1 mph

Hydraulic System

Pump Flow Capacity

29.1 gal/min

Relief Valve Pressure

2900.8 psi

Dimensions

Overall width

8.4 ft in

Overall height

10.1 ft in

Wheelbase

109.1 in

Overall Length

205.8 in

Height to Top of Cab

9.9 ft in

Ground Clearance

21.8 in

Width Outside Frame

8.5 ft in
