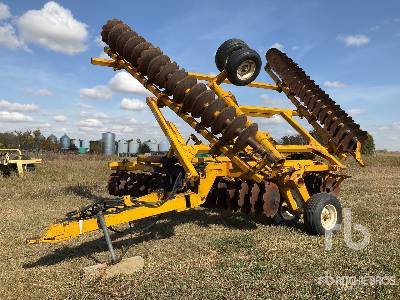

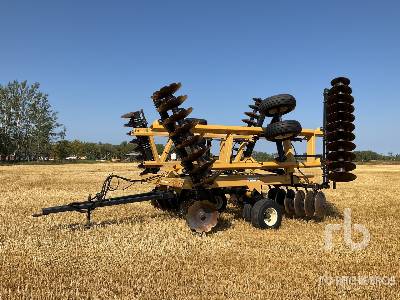

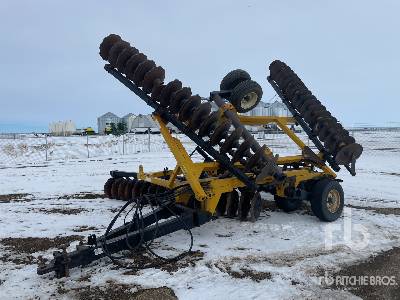

Ezee-On 4490 Disc
Units
Dimensions
Dimensions
B
Transport Width
12ft in
C
Transport Height
16.08ft in
Wing Tires
23.5\' to 27\'-L/R \"C\" (4)
Working Width Spacing #1 Max
32ft in
Working Width Spacing #1 Min
18.5ft in
Working Width Spacing #2 Max
32.5ft in
Main Frame Tires
23.5\' to 27\'-L/R \"D\" (4)
Working Width Spacing #2 Min
18ft in
Pto Power Required Per Width Ft.
5.5hp
Specifications
Disc System
Spacing #1
8in
Spacing #2
9in
Blade Diameter
22in
Blade Thickness
0.3in
Depth Control
3 cyl. series system
