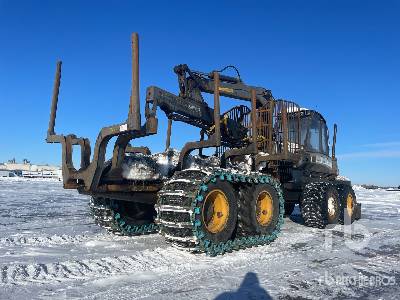

Eco Log 564B Forwarder

Eco Log 564B Forwarder Specs front
Eco Log 564B Forwarder Specs front
Eco Log 564B Forwarder Specs back
Eco Log 564B Forwarder Specs back
Eco Log 564B Forwarder Specs extended
Eco Log 564B Forwarder Specs extended
Units

Dimensions

Dimensions

A

Length

29.66 ft in

B

Width Over Tires

12.46 ft in

C

Height to Top of crane

12.09 ft in

E

Ground Clearance

2.17 ft in

F

Length of Bunk Area

13.46 ft in


Specifications

Engine

Engine Make

2236

Engine Model

3056E

Power

174 hp

Torque

512.7 lb ft

Displacement

366.2 cu in

Operational

Operating Weight - 8wd

277562.1 lb

Fuel Capacity

39.7 gal

Hydraulic System Fluid Capacity

38.4 gal

Operating Voltage

24 V

Alternator Supplied Amperage

150 amps

Front/Rear Tire Size - 8wd

710/50x26.5

Transmission

Transmission Type

Hydrostatic Mechanical

Number of Forward Gears

2

Number of Reverse Gears

2

Max Speed

15.6 mph

Bunk

Load Weight - 8wd

26455.5 lb

Load Area

46.3 ft2

Crane

Max Reach

32.9 ft in

Dimensions

Length

29.7 ft in

Width Over Tires

12.5 ft in

Height to Top of Crane

12.1 ft in

Ground Clearance

2.2 ft in

Length of Bunk Area

13.5 ft in
