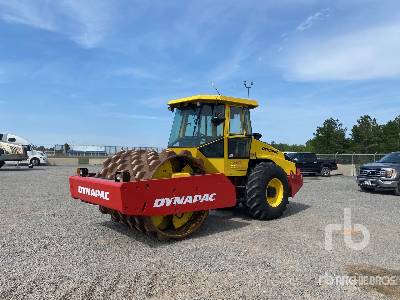

Dynapac CA512PD Vibratory Compactor

Dynapac CA512PD Vibratory Compactor Specs front
Dynapac CA512PD Vibratory Compactor Specs front
Dynapac CA512PD Vibratory Compactor Specs side
Dynapac CA512PD Vibratory Compactor Specs side
Dynapac CA512PD Vibratory Compactor Specs back
Dynapac CA512PD Vibratory Compactor Specs back
Units

Dimensions

Dimensions

A

Overall Length w/o Blade

19.69 ft in

B

Width Over Tires

6.99 ft in

C

Height to Top of Cab

9.81 ft in

D

Wheelbase

- -

E

Ground Clearance

17.72 in

Drum

F

Drum Diameter

60.75 in


Specifications

Engine

Number of Cylinders

6

Engine Make

2347

Engine Model

QSB 6.7 T3

Gross Power

173 hp

Power Measured @

2200 rpm

Displacement

408.9 cu in

Aspiration

water cooled turbo diesel with after cooler

Operational

Operating Weight

34833.1 lb

Fuel Capacity

84.6 gal

Max Speed

6.9 mph

Tires

23.1x26

Drum

Drum Width

83.9 in

Drum Diameter

60.8 in

Number of Pads

130

Pad Height

4 in

Pad Surface Area

22.7 in2

Vibration Frequency 1

29 Hz

Nominal Amplitude - High

0.1 in

Centrifugal Force - High

67442.7 lb

Vibratory Frequency 2

33 Hz

Nominal Amplitude - Low

0.1 in

Centrifugal Force - Low

53504.6 lb

Dimensions

Overall Length w/o Blade

19.7 ft in

Width Over Tires

7 ft in

Height to Top of Cab

9.9 ft in

Wheelbase

Ground Clearance

17.8 in
