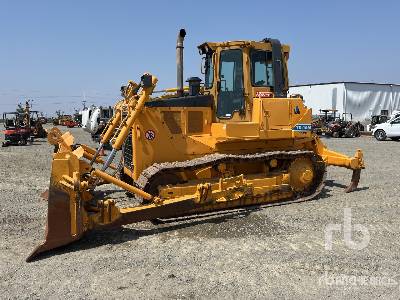

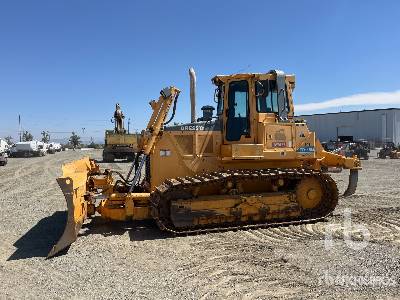

Dressta TD15M LT Crawler Tractor
Units
Dimensions
Dimensions
B
Width Over Tracks
9.22ft in
C
Height To Top Of Cab
11.32ft in
E
Ground Clearance
1.46ft in
F
Length W/O Blade
19.18ft in
Undercarriage
H
Standard Shoe Size
20in
Ground Pressure
9.5psi
Number Of Shoes Per Side
43
Number Of Track Rollers Per Side
8
Ground Contact Area
4.8in2
Specifications
Engine
Number Of Cylinders
6
Engine Make
2347
Engine Model
QSC 8.3
Gross Power
205hp
Net Power
190hp
Displacement
505cu in
Torque Measured @
1500rpm
Aspiration
Turbocharged and CAC
Operational
Operating Weight
44665lb
Fuel Capacity
102.5gal
Cooling System Fluid Capacity
13.2gal
Engine Oil Capacity
6.1gal
Hydraulic Fluid Capacity
16gal
Powertrain Fluid Capacity
40.4gal
Final Drives Fluid Capacity
10.6gal
Operating Voltage
12V
Transmission
Transmission Type
Modular, countershaft type power shift, electro-hydraulic control
Number Of Forward Gears
3
Number Of Reverse Gears
3
Max Speed - Forward
6.3mph
Max Speed - Reverse
7.4mph
Hydraulic System
Pump Type
Pump, tandem gear, driven from torque converter
Relief Valve Pressure
2500psi
Pump Flow Capacity
46gal/min
Standard Blade
Width
13.6ft in
Height
44in
Capacity
5yd3
Blade Angle (Both Directions)
25degrees
Cutting Depth
24in
