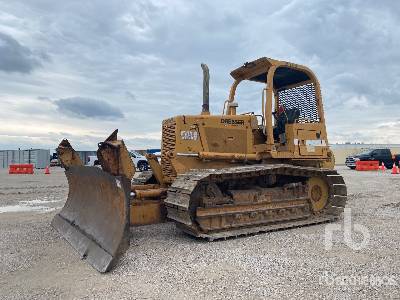

Dresser TD12C-XP Crawler Tractor
Units
Dimensions
Dimensions
B
Width Over Tracks
7.98ft in
C
Height To Top Of Cab
10.77ft in
Undercarriage
H
Standard Shoe Size
22.01in
Ground Contact Area
4840in2
Ground Pressure
6.8psi
Number Of Shoes Per Side
42
Specifications
Engine
Number Of Cylinders
6
Engine Make
KOMATSU
Engine Model
S6D102E-1
Gross Power
152hp
Net Power
142hp
Power Measured @
2500rpm
Max Torque
405.7lb ft
Displacement
358.9cu in
Torque Measured @
1600rpm
Operational
Fuel Capacity
65gal
Cooling System Fluid Capacity
11.5gal
Final Drives Fluid Capacity
8gal
Operating Voltage
24V
Transmission
Number Of Forward Gears
3
Number Of Reverse Gears
3
Max Speed - Forward
6.5mph
Max Speed - Reverse
7.7mph
