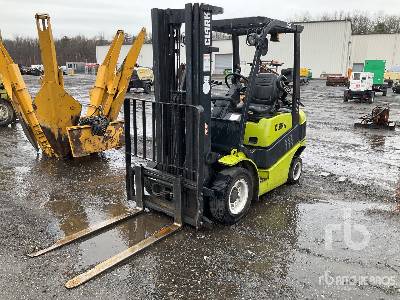

Clark Michigan CSP15 Forklift
Units
Dimensions
Dimensions
A
Length To Fork Face
4.21ft in
C
Overall Height - Mast Lowered
6.92ft in
D
Wheelbase
4.93ft in
E
Ground Clearance
4.02in
F
Height To Top Of Overhead Guard
3.11ft in
G
Max Fork Height
9.84ft in
Right Angle Stack
7.75ft in
Turning Radius
5.65ft in
Mast
H
Mast Tip Forward
2degrees
I
Mast Tip Rear
6degrees
Max Fork Spread
29.53in
Load Center
24in
Lower Speed
31ft/min
Load Capacity
3000lb
Number Of Mast Sections
3
Lift Speed
25ft/min
Specifications
Engine
Fuel Type
Electric 24V
Operational
Operating Weight
3135lb
Tire Type
Poly
Number Of Front Wheels
4
Number Of Rear Wheels
1
Max Speed
3.5mph
