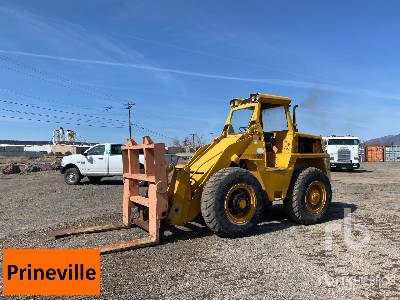

Clark Michigan 45C Wheel Loader

Clark Michigan 45C Wheel Loader Specs front
Clark Michigan 45C Wheel Loader Specs front
Clark Michigan 45C Wheel Loader Specs side
Clark Michigan 45C Wheel Loader Specs side
Clark Michigan 45C Wheel Loader Specs back
Clark Michigan 45C Wheel Loader Specs back
Units

Dimensions

Bucket

G

Dump Clearance at Max Raise

8.95 ft in

Dimensions

A

Length with Bucket on Ground

21.08 ft in

B

Width Over Tires

7.5 ft in

C

Height to Top of Cab

10.24 ft in

D

Wheelbase

8.54 ft in

E

Ground Clearance

1.25 ft in

F

Hinge Pin - Max Height

11.65 ft in

H

Reach at Max Lift and Dump

2.94 ft in


Specifications

Engine

Number of Cylinders

6

Engine Make

2351

Engine Model

6.354.4

Net Power

109 hp

Gross Power

116 hp

Power Measured @

2500 rpm

Displacement

354 cu in

Torque Measured @

1400 rpm

Max Torque

378

Operational

Operating Weight

21392 lb

Fuel Capacity

39.9 gal

Hydraulic System Fluid Capacity

31.8 gal

Engine Oil Fluid Capacity

3.5 gal

Cooling System Fluid Capacity

9.6 gal

Transmission Fluid Capacity

5 gal

Front Axle/Diff Fluid Capacity

3 gal

Rear Axle/Diff Fluid Capacity

3 gal

Static Tipping Weight

12771 lb

Turning Radius

18.8 ft in

Operating Voltage

12 V

Alternator Supplied Amperage

70 amps

Rear Axle Oscillation

18 degrees

Tire Size

17.5-25

Transmission

Transmission Type

clark countershaft powershift

Number of Forward Gears

3

Number of Reverse Gears

3

Max Speed - Forward

17.9 mph

Max Speed - Reverse

17.9 mph

Hydraulic System

Pump Type

gear type

Relief Valve Setting

2500

Pump Flow Capacity

33.9 gal/min

Raise Time

6 sec

Dump Time

1.5 sec

Lower Time

3.5 sec

Bucket

Breakout Force

15152.2 lb

Dump Clearance at Max Raise

9 ft in

Bucket Width

8.3 ft in

Bucket Capacity - heaped

1.8 yd3

Bucket Capacity - struck

1.5 yd3

Dimensions

Length with Bucket on Ground

21.1 ft in

Width Over Tires

7.5 ft in

Height to Top of Cab

10.3 ft in

Ground Clearance

1.3 ft in

Wheelbase

8.6 ft in

Hinge Pin - Max Height

11.7 ft in

Reach at Max Lift and Dump

3 ft in
