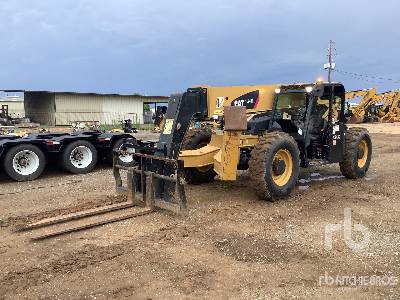

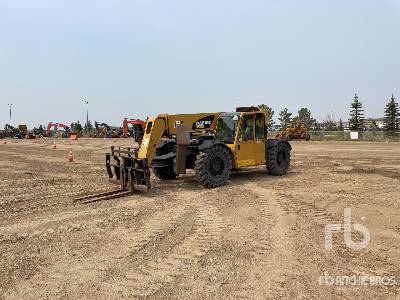

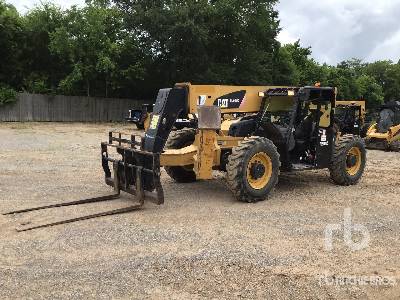

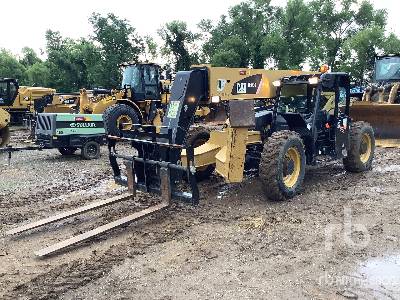

Caterpillar TL943 Telescopic Forklift
Dimensions
Dimensions
Length To Fork Face
20.51ft in
Ground Clearance
1.59ft in
Width Over Tires
7.94ft in
Overall Height
7.98ft in
Wheelbase
11ft in
Height
8ft in
Turning Radius - Over Tires
12ft in
Turning Radius Outside Tires
12ft in
Wheel Base
11ft in
Width
7.94 ft
Length - Fork Face
20.5ft in
Lift
Max Lift Height
43ft in
Max Forward Reach
31.33ft in
Max Load At Max Height
7000lb
Max Load At Max Reach
1200lb
Max Lift Capacity
9000lb
Specifications
Engine
Engine Make
2236
Engine Model
3054C, Tier II
Gross Power
99hp
Net Power
94.5hp
Displacement
268.5cu in
Bore
4.2in
Stroke
5in
Engine Model
Cat C4.4 DITAAC, Tier III
Gross Power - Basic
99hp
Maximum Torque - Standard
302.4lb ft
Operational
Operating Weight
26050lb
Fuel Capacity
38gal
Hydraulic System Fluid Capacity
40gal
Tire Size
13.00 x 24-12 PR
Transmission
Number Of Forward Gears
4
Number Of Reverse Gears
3
Max Speed - Forward
17.6mph
Tires
Standard
13.00 x 24 12-PR
Weights
Operating Weight
26050lb
Tires
Optional Construction
13.00 x 24 Foam Filled or Rock Lug or Solid
Hydraulic
Pump Type
Tandem Gear Pump
Hydraulic System
Pump Type
Tandem gear pump
Axles
Manufacturer
Dana
Operator Station
Features
Vinyl suspension seat, single electronic joystick, spacious interior, ergonomic cab
Brakes
Parking Brake
Spring-applied hydraulic release on front axle
Features
Service Brakes - inboard wet disc brakes on front and rear axles; Parking Brakes- spring-applied hydraulic release on front axle
Operating Specifications
Rated Load Capacity
9000lb
Maximum Lift Height
43ft in
Maximum Forward Reach
31.4ft in
Top Travel Speed
17.6mph
Load At Maximum Height
7000lb
Load At Maximum Reach
1200lb
Load At Maximum Reach - No Stabilizers
1200lb
Load At Maximum Height - No Stabilizers
7000lb
Service Refill Capacities
Fuel Tank
38gal
Hydraulic Tank
40gal
Boom Performance
Boom Up
11.8 s
Boom Down
9.1 s
Tele In
12.9 s
Tele Out
14.7 s
Drawbar Pull - Basic
22619lb
Instrumentation
Features
Volt meter, hourmeter, engine oil pressure gauge, fuel gauge, water temperature gauge
