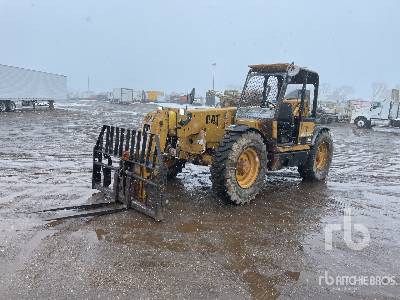

Caterpillar TH83 US Telescopic Forklift

Caterpillar TH83 US Telescopic Forklift Specs front
Caterpillar TH83 US Telescopic Forklift Specs front
Caterpillar TH83 US Telescopic Forklift Specs side
Caterpillar TH83 US Telescopic Forklift Specs side
Caterpillar TH83 US Telescopic Forklift Specs extended
Caterpillar TH83 US Telescopic Forklift Specs extended
Units

Dimensions

Dimensions

A

Length to Fork Face

18.77 ft in

B

Width Over Tires

8.04 ft in

C

Overall Height

8.04 ft in

D

Wheelbase

9.75 ft in

E

Ground Clearance

17.72 ft in

Lift

F

Max Lift Height

41.02 ft in

G

Max Forward Reach

26.91 ft in


Specifications

Engine

Number of Cylinders

4

Engine Make

2236

Engine Model

3054T

Gross Power

109 hp

Power Measured @

2200 rpm

Displacement

244.1 cu in

Aspiration

Turbocharged

Operational

Operating Weight

22046.3 lb

Fuel Capacity

31.8 gal

Hydraulic System Fluid Capacity

39.7 gal

Tire Size

14x24 12PR

Transmission

Number of Forward Gears

4

Number of Reverse Gears

3

Max Speed - forward

19.9 mph

Max Speed - reverse

13.7 mph

Lift

Max Lift Capacity

8013.9 lb

Max Lift Height

41.1 ft in

Max Load at Max Height

8013.9 lb

Max Forward Reach

27 ft in

Max Load at Max Reach

3902.2 lb

Dimensions

Length to Fork Face

18.8 ft in

Width Over Tires

8.1 ft in

Overall Height

8.1 ft in

Wheelbase

9.8 ft in

Ground Clearance

17.8 ft in

Turning Radius Outside Tires

12.5 ft in
