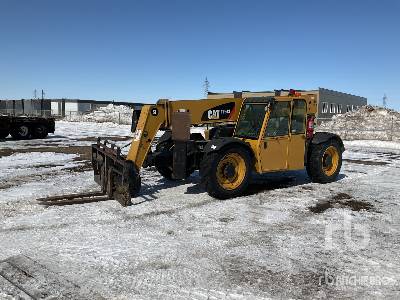

Caterpillar TH360B Telescopic Forklift

Caterpillar TH360B Telescopic Forklift Specs front
Caterpillar TH360B Telescopic Forklift Specs front
Caterpillar TH360B Telescopic Forklift Specs side
Caterpillar TH360B Telescopic Forklift Specs side
Caterpillar TH360B Telescopic Forklift Specs extended
Caterpillar TH360B Telescopic Forklift Specs extended
Units

Dimensions

Dimensions

A

Length to Fork Face

21.63 ft in

B

Width Over Tires

8.01 ft in

C

Overall Height

8.54 ft in

D

Wheelbase

10.5 ft in

E

Ground Clearance

19.89 ft in

Lift

F

Max Lift Height

44.3 ft in

G

Max Forward Reach

30.19 ft in


Specifications

Engine

Number of Cylinders

4

Engine Make

2236

Engine Model

3054E

Gross Power

100 hp

Net Power

96.3 hp

Power Measured @

2200 rpm

Max Torque

302.4 lb ft

Torque Measured @

1400 rpm

Displacement

268.6 cu in

Operational

Operating Weight

21980.1 lb

Fuel Capacity

26.5 gal

Hydraulic System Fluid Capacity

17.2 gal

Operating Voltage

12 V

Alternator Supplied Amperage

90 amps

Tire Size

13.00-24

Transmission

Transmission Type

Power shift

Number of Forward Gears

4

Number of Reverse Gears

3

Max Speed - forward

19.9 mph

Max Speed - reverse

12.5 mph

Hydraulic

Pump Type

variable displacement load sensing axial piston pump

Pump Flow Capacity

29.9 gal/min

Relief Valve Pressure

3626 psi

Lift

Max Lift Capacity

6613.9 lb

Max Lift Height

44.3 ft in

Max Load at Max Height

6613.9 lb

Max Forward Reach

30.2 ft in

Max Load at Max Reach

3086.5 lb

Dimensions

Length to Fork Face

21.7 ft in

Width Over Tires

8.1 ft in

Overall Height

8.6 ft in

Wheelbase

10.5 ft in

Ground Clearance

19.9 ft in

Turning Radius Outside Tires

12.8 ft in


Compare similar models

Manufacturer / Model

Operating Weight

Max Lift Capacity

Max Forward Reach

Operating Weight

21781 lb

Max Lift Capacity

6600 lb

Max Forward Reach

29 ft in

Operating Weight

22000 lb

Max Lift Capacity

6600 lb

Max Forward Reach

28.3 ft in

Operating Weight

22266.7 lb

Max Lift Capacity

6613.9 lb

Max Forward Reach

28.8 ft in
