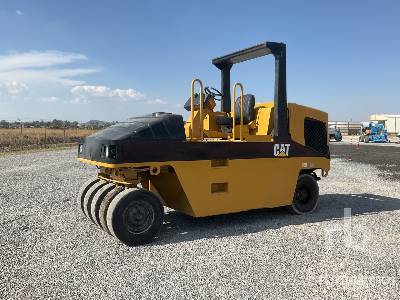

Caterpillar PS150C Pneumatic Roller

Pneumatic Roller
Pneumatic Roller
Pneumatic Roller
Pneumatic Roller
Pneumatic Roller
Pneumatic Roller
Units

Dimensions

Dimensions

A

Overall Length

169in

B

Overall Width

5.67ft in

C

Height to Top of ROPS

9.85ft in

D

Wheelbase

10.96ft in

E

Ground Clearance

0.88ft in

Operating Specifications

E

Ground Clearance

0.88ft in


Specifications

Engine

Number of Cylinders

4

Engine Make

2236

Engine Model

3054C

Gross Power

100hp

Net Power

96.6hp

Power Measured @

2200rpm

Displacement

268.6cu in

Aspiration

turbocharged

Engine Model

3054C

Operational

Fuel Capacity

45.8gal

Cooling System Fluid Capacity

4.3gal

Engine Oil Capacity

2gal

Hydraulic System Fluid Capacity

14.6gal

Water Spray Tank Fluid Capacity

104.1gal

Max Speed

16mph

Operating Voltage

24V

Alternator Supplied Amperage

55amps

Weights

Operating Weight - standard

10769.6lb

Operating Weight - max ballast

28527.9lb

Average Weight per Wheel - Standard

1201.6lb

Average Weight per Wheel - Max Ballast

3174.7lb

Operating Weight - No Ballast

10775lb

Average Weight per Wheel - No Ballast

1200lb

Average Weight per Wheel - Maximum Ballast

3180lb

Operating Weight - Maximum Ballast

28535lb

Tires

Number of Tires - Front

5

Number of Tires - Rear

4

Standard Tire Size

8.50/90x15 6-ply

Oscillation Angle

4.4degrees

Wheel Track/Tire Overlap

0.6in

Tires

6-ply 8.50/90 x 15

Dimensions

Overall Length

169in

Overall Width

5.7ft in

Height to Top of ROPS

9.9ft in

Wheelbase

11ft in

Ground Clearance

0.9ft in

Height - Steering Wheel

91in

Maximum Machine Height

118in

Operating Specifications

Ground Clearance

0.9ft in

Travel Speed - Maximum

15.9mph

Number of Wheels

9

Compaction Width

68in

Turning Radius - Inside

15.3ft in

Service Refill Capacities

Fuel Tank Capacity

45.6gal

Water Spray Tank Capacity

104gal

`
