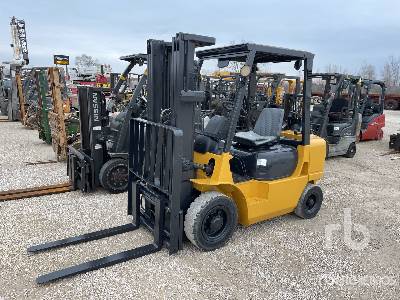

Caterpillar P3500 Forklift

Caterpillar P3500 Forklift Specs front
Caterpillar P3500 Forklift Specs front
Caterpillar P3500 Forklift Specs side
Caterpillar P3500 Forklift Specs side
Caterpillar P3500 Forklift Specs back
Caterpillar P3500 Forklift Specs back
Units

Dimensions

Dimensions

A

Length to Fork Face

7.53 ft in

B

Overall Width

3.5 ft in

C

Overall Height - mast lowered

7.03 ft in

D

Wheelbase

4.6 ft in

E

Ground Clearance

4.34 in

F

Height to Top of Overhead Guard

6.89 ft in

G

Max Fork Height

10.9 ft in

MAST

H

Mast Tip Forward

6 degrees

I

Mast Tip Rear

10 degrees


Specifications

Engine

Engine Model

K21

Power

54.5 hp

Torque

110 lb ft

Power Measured @

2875 rpm

Displacement

126 cu in

Torque Measured @

1600 rpm

Fuel Type

gas

Operational

Operating Weight

6000 lb

Tire Type

pneumatic

Number of Front Wheels

2

Number of Rear Wheels

2

Max Speed

11.5 mph

MAST

Load Capacity

3858.1 lb

Load Center

19.7 in

Mast Tip Forward

6 degrees

Mast Tip Rear

10 degrees

Max Fork Spread

36.3 in

Lift Speed

125 ft/min

Lower Speed

98 ft/min

Dimensions

Wheelbase

4.6 ft in

Length to Fork Face

7.6 ft in

Overall Width

3.5 ft in

Overall Height - mast lowered

7.1 ft in

Max Fork Height

10.9 ft in

Turning Radius

6.5 ft in

Height to Top of Overhead Guard

6.9 ft in

Ground Clearance

4.4 in
