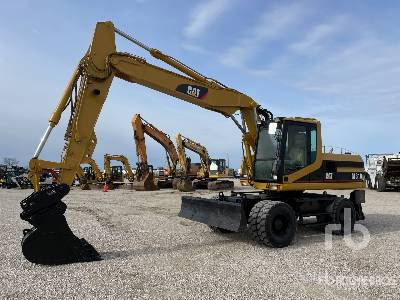

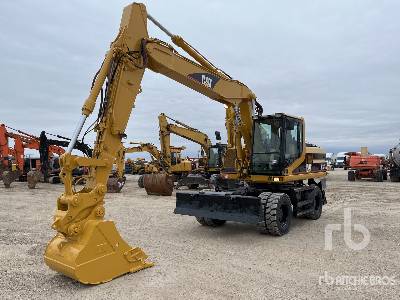

Caterpillar M318 Mobile Excavator

Mobile Excavator
Mobile Excavator
Mobile Excavator
Mobile Excavator
Mobile Excavator
Mobile Excavator
Units

Dimensions

Boom/Stick Option (MEX) 1

I

Max Cutting Height

27.99 ft in

J

Max Loading Height

19.95 ft in

K

Max Reach Along Ground

27.86 ft in

L

Max Vertical Wall Dig Depth

9.62 ft in

M

Max Digging Depth

16.7 ft in

Boom/Stick Option (MEX) 2

I

Max Cutting Height

29.17 ft in

J

Max Loading Height

14.21 ft in

K

Max Reach Along Ground

29.66 ft in

L

Max Vertical Wall Dig Depth

14.31 ft in

M

Max Digging Depth

18.67 ft in

Boom/Stick Option (MEX) 3

I

Max Cutting Height

29.37 ft in

J

Max Loading Height

21.07 ft in

K

Max Reach Along Ground

30.78 ft in

L

Max Vertical Wall Dig Depth

14.97 ft in

M

Max Digging Depth

19.99 ft in

Boom/Stick Option (MEX) 4

I

Max Cutting Height

31.01 ft in

J

Max Loading Height

22.09 ft in

K

Max Reach Along Ground

34.62 ft in

L

Max Vertical Wall Dig Depth

17.95 ft in

M

Max Digging Depth

24.18 ft in

Dimensions

B

Overall Width

9.68 in

D

Wheelbase

9.03 ft in

E

Ground Clearance

1.24 ft in

F

Overall Width - Outriggers Down

12.59 ft in

G

Height to Top of Cab

10.18 ft in

N

Upper Structure Clearance

4.2 ft in


Specifications

Fuel Tank

Fuel Tank Capacity

85 gal

Engine

Engine Model

3116T

Gross Power

140 hp

Displacement

402.8 cu in

Engine Model

Cat 3116 DIT

Flywheel Power

131 hp

Operational

Fuel Capacity

97.8 gal

Hydraulic System Fluid Capacity

79.3 gal

Hydraulic System Relief Valve Pressure

4785 psi

Hydraulic Pump Flow Capacity

98.3 gal/min

Tire Size

dual 10-20 16PR

Transmission

Max Travel Speed

21.2 mph

Creeper Speed - 2nd Gear

10 mph

Maximum Travel Speed

21 mph

Maximum Gradeability

57

Hydraulic System

Travel Circuit

4693.7 psi

Normal

4779.04 psi

Implement/Travel Circuit

68.68 gal/min

Boom/Stick Option (MEX) 1

Boom/Stick Option (MEX) 1

boom w/ stick 1800mm

Max Digging Depth

16.7 ft in

Max Reach Along Ground

27.9 ft in

Max Cutting Height

28 ft in

Max Loading Height

20 ft in

Max Vertical Wall Dig Depth

9.7 ft in

Boom/Stick Option (MEX) 2

Boom/Stick Option (MEX) 2

boom w/ stick 2400mm

Max Digging Depth

18.7 ft in

Max Reach Along Ground

29.7 ft in

Max Cutting Height

29.2 ft in

Max Loading Height

14.3 ft in

Max Vertical Wall Dig Depth

14.4 ft in

Boom/Stick Option (MEX) 3

Boom/Stick Option (MEX) 3

boom w/ stick 2800mm

Max Digging Depth

20 ft in

Max Reach Along Ground

30.8 ft in

Max Cutting Height

29.4 ft in

Max Loading Height

21.1 ft in

Max Vertical Wall Dig Depth

15 ft in

Boom/Stick Option (MEX) 4

Boom/Stick Option (MEX) 4

boom w/ stick 400mm

Max Digging Depth

24.2 ft in

Max Reach Along Ground

34.7 ft in

Max Cutting Height

31.1 ft in

Max Loading Height

22.1 ft in

Max Vertical Wall Dig Depth

18 ft in

Dimensions

Overall Width

9.7 in

Overall Width - Outriggers Down

12.6 ft in

Height to Top of Cab

10.2 ft in

Wheelbase

9.1 ft in

Ground Clearance

1.3 ft in

Upper Structure Clearance

4.2 ft in

Operating Specifications

Travel Speed

21 mph

Maximum Reach - Ground Level

30.8 ft in

Maximum Bucket Capacity

1.4 yd3

Bucket Digging Force - One Piece Boom

25650 lb

Maximum Digging Depth - One Piece Boom

20 ft in

Maximum Reach - Ground Level, One Piece Boom

30.8 ft in

Stick Digging Force - One Piece Boom

16875 lb

Bucket Digging Force - VA Boom

25650 lb

Maximum Digging Depth - VA Boom

20.3 ft in

Maximum Reach - Ground Level, VA Boom

30.7 ft in

Stick Digging Force - VA Boom

16875 lb

Service Refill Capacities

Fuel Tank

84.6 gal

Hydraulic Tank

35.7 gal

Hydraulic System - Including Tank

58.2 gal

Engine Crankcase

5.6 gal

Powershift Transmission

0.8 gal

Front Steering Axle - Differential

2.3 gal

Rear Axle - Housing (Differential)

3 gal

Cooling

9.3 gal
