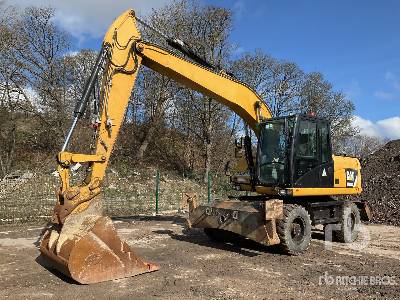

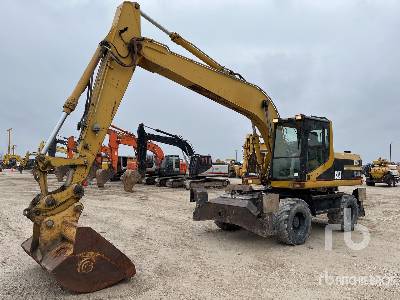

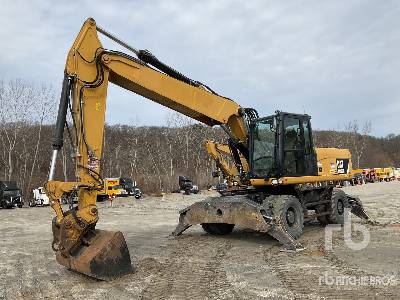

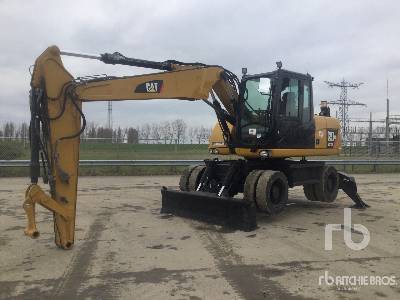

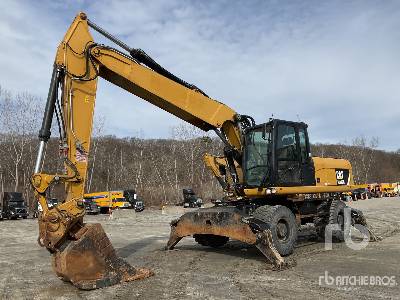

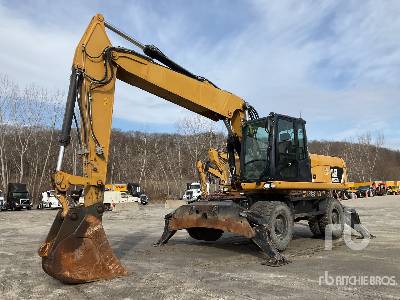

Caterpillar M315D Mobile Excavator

Mobile Excavator
Mobile Excavator
Mobile Excavator
Mobile Excavator
Mobile Excavator
Mobile Excavator
Units

Dimensions

Boom/Stick Option (Mex) 1

A

Shipping Length Of Unit

27.83ft in

C

Shipping Height Of Unit

10.34ft in

I

Max Cutting Height

32.94ft in

J

Max Loading Height

22.81ft in

K

Max Reach Along Ground

29.24ft in

L

Max Vertical Wall Dig Depth

12.21ft in

M

Max Digging Depth

18.34ft in

Boom/Stick Option (Mex) 1

VA Boom / stick 2.1m

Boom/Stick Option (Mex) 2

A

Shipping Length Of Unit

27.79ft in

C

Shipping Height Of Unit

10.34ft in

I

Max Cutting Height

34.06ft in

J

Max Loading Height

23.96ft in

K

Max Reach Along Ground

30.78ft in

L

Max Vertical Wall Dig Depth

13.42ft in

M

Max Digging Depth

19.99ft in

Boom/Stick Option (Mex) 2

VA Boom / stick 2.6m

Boom/Stick Option (Mex) 3

C

Shipping Height Of Unit

10.34ft in

A

Shipping Length Of Unit

27.3ft in

I

Max Cutting Height

29.47ft in

J

Max Loading Height

19.69ft in

K

Max Reach Along Ground

28.58ft in

L

Max Vertical Wall Dig Depth

11.52ft in

M

Max Digging Depth

17.69ft in

Boom/Stick Option (Mex) 3

One-piece Boom / stick 2.1m

Boom/Stick Option (Mex) 4

C

Shipping Height Of Unit

10.34ft in

A

Shipping Length Of Unit

27.83ft in

I

Max Cutting Height

32.94ft in

J

Max Loading Height

22.81ft in

K

Max Reach Along Ground

29.24ft in

L

Max Vertical Wall Dig Depth

12.21ft in

M

Max Digging Depth

18.34ft in

Boom/Stick Option (Mex) 4

Offset Boom / stick 2.1m

Dimensions

D

Wheelbase

8.37ft in

H

Tail Swing Radius

7.27ft in

B

Overall Width

8.37in

E

Ground Clearance

1.22ft in

F

Overall Width - Outriggers Down

12.03ft in

G

Height To Top Of Cab

10.34ft in

N

Upper Structure Clearance

4.15ft in

Support Point

140.16in

Counterweight Clearance

4.14ft in

Undercarriage

E

Ground Clearance

1.25ft in

Oscillation Axle Angle

9 degrees

Minimum Turning Radius - End Of One-Piece Boom

27ft in

Minimum Turning Radius - Outside Of Tire

21ft in

Minimum Turning Radius - End Of Va Boom

23ft in


Specifications

Fuel Tank

Fuel Tank Capacity

62.1gal

Engine

Cylinders

4

Number Of Cylinders

4

Engine Make

2236

Engine Model

C4.4 Acert

Gross Power

145hp

Net Power

135hp

Power Measured @

2000rpm

Displacement

269cu in

Torque Measured @

1400rpm

Net Torque

406lb ft

Bore

4.2in

Stroke

5in

Net Power - Iso 9249

137hp

Engine Model

Cat C4.4 ACERT

Eec 80/1269

135hp

Iso 9249

135hp

Maximum Torque - 1,400 Rpm

406lb ft

Ratings

2000rpm

Net Power - 2,000 Rpm - Iso 9249 (Din)

137hp

Operational

Operating Weight

39462.8lb

Fuel Capacity

62.1gal

Cooling System Fluid Capacity

8gal

Engine Oil Capacity

2.2gal

Front Diff Fluid Capacity

2.8gal

Rear Diff Fluid Capacity

3.7gal

Hydraulic System Fluid Capacity

58.2gal

Alternator Supplied Amperage

75amps

Hydraulic System Relief Valve Pressure

5076psi

Hydraulic Pump Type

Piston

Hydraulic Pump Flow Capacity

58.2gal/min

Oscillating Axle Angle

9degrees

Max Steering Angle

35degrees

Tire Size

10.00-20 16PR, dual

Swing Mechanism

Swing Speed

10.5rpm

Swing Torque

29502lb ft

Transmission

Transmission Type

Gear

Number Of Forward Gears

2

Number Of Reverse Gears

2

Max Travel Speed

21.2mph

Drawbar Pull

21806lb

Creeper Speed - 2nd Gear

8mph

Maximum Travel Speed

21mph

Forward/Reverse - 1st Gear

5mph

Creeper Speed - 1st Gear

2mph

Forward/Reverse - 2nd Gear

21mph

Maximum Gradeability

69 %

Swing Mechanism

Maximum Pressure

5366.39 psi

Tires

Standard

10.00-20 dual pneumatic

Optional

See Optional Equipment

Weights

Counterweight

7716lb

Counterweights - Standard

7700lb

Counterweights - Optional

8590lb

Dozer Blade

1653lb

Outriggers

2116lb

Rear - Dozer Only (1)

33731lb

Front And Rear Outriggers (1)

36486lb

Rear - Dozer, Front Outriggers (2)

36927.4lb

Rear - Dozer, Front Outriggers (1)

35825lb

Rear - Dozer Only (2)

34833lb

Front And Rear Outriggers (2)

37588.8lb

Rear - Dozer Only (3)

32739lb

Rear - Dozer, Front Outriggers (3)

34833lb

Front And Rear Outriggers (3)

35494lb

Va Boom* - Rear Dozer Only

34880lb

Va Boom* - Rear Dozer, Front Outriggers

36970lb

Va Boom* - Front And Rear Outriggers

37630lb

Sticks - Short (2100 Mm)

1035lb

Sticks - Medium (2400 Mm)

1132lb

One-Piece Boom* - Rear Dozer Only

33780lb

Sticks - Long (2600 Mm)

1167lb

Offset Boom* - Front And Rear Outriggers

38623lb

Offset Boom* - Rear Dozer Only

35870lb

Offset Boom* - Rear Dozer, Front Outriggers

37960lb

One-Piece Boom* - Front And Rear Outriggers

36530lb

One-Piece Boom* - Rear Dozer, Front Outriggers

35870lb

2.6 M (8'6") Stick

1168lb

2.4 M (7'10") Stick

1133lb

3.1 M (10'2") Industrial Stick

992lb

2.1 M (6'11") Stick

1036lb

Buckets

Reference Bucket Capacity

1.1yd3

Minimum Bucket Capacity

0.5yd3

Maximum Bucket Capacity

1.5yd3

Hydraulic System

Travel Circuit

5076 psi

System

67.3 gal (US)

Normal

5076 psi

Tank Capacity

35.6gal

Maximum Pressure - Auxiliary Circuit - High Pressure

5076 psi

Maximum Pressure - Implement Circuit - Normal

5076 psi

Maximum Pressure - Implement Circuit - Heavy Lift

5439 psi

Maximum Pressure - Auxiliary Circuit - Medium Pressure

2683 psi

Maximum Pressure - Travel Circuit

5076 psi

Maximum Flow - Implement/Travel Circuit

58 gal/min

Maximum Flow - Swing Mechanism

21.1 gal/min

Maximum Flow - Auxiliary Circuit - High Pressure

58 gal/min

Maximum Flow - Auxiliary Circuit - Medium Pressure

13.2 gal/min

Maximum Pressure - Swing Mechanism

5366 psi

Implement/Travel Circuit

58 gal/min

Heavy Lift

5439 psi

High Pressure (1)

5076 psi

Medium Pressure (2)

13 gal/min

High Pressure (2)

58 gal/min

Swing Mechanism (2)

21 gal/min

Swing Mechanism (1)

5366 psi

Medium Pressure (1)

2683 psi

Operating Specifications

Travel Speed

21.2mph

Maximum Reach - Ground Level

30.8ft in

Maximum Bucket Capacity

1.5yd3

Bucket Digging Force - One Piece Boom

22705.7lb

Maximum Digging Depth - One Piece Boom

19.4ft in

Maximum Reach - Ground Level, One Piece Boom

30.1ft in

Stick Digging Force - One Piece Boom

18209.6lb

Bucket Digging Force - Va Boom

22705.7lb

Maximum Digging Depth - Va Boom

20ft in

Maximum Reach - Ground Level, Va Boom

30.8ft in

Stick Digging Force - Va Boom

18209.6lb

Service Refill Capacities

Fuel Tank

62gal

Hydraulic Tank

36gal

Hydraulic System - Including Tank

58gal

Engine Crankcase

2.1gal

Final Drive

0.7gal

Powershift Transmission

0.7gal

Front Steering Axle - Differential

2.8gal

Rear Axle - Housing (Differential)

3.7gal

Cooling

7.9gal

Standards

Brakes

SAE J1026 APR 90

Cab/Fogs

ISO 10262

Sound Performance

Performance

Exterior sound power level according to 2000/14/EC is 103 db (A) Interior sound pressure level LpA is 72 db (A)

Drive

Maximum Travel Speed

21mph

Sound Levels

Exterior Sound

Exterior Sound

Working Ranges

Maximum Digging Depth

20ft in

Maximum Reach - Ground Level

30.8ft in

Bucket Specifications

Bucket Capacities

0.38 to 1.26 m3 (0.5 to 1.65 yd3)

Cab/Rops/Fogs

Standards

Standards
