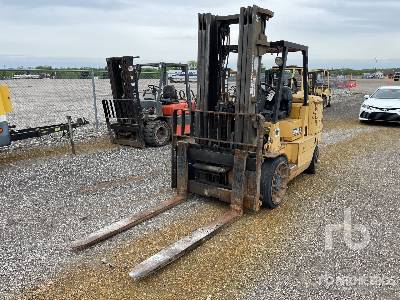

Caterpillar GC70K Forklift

Caterpillar GC70K Forklift Specs front
Caterpillar GC70K Forklift Specs front
Caterpillar GC70K Forklift Specs side
Caterpillar GC70K Forklift Specs side
Caterpillar GC70K Forklift Specs back
Caterpillar GC70K Forklift Specs back
Units

Dimensions

Dimensions

A

Length to Fork Face

9.68 ft in

B

Overall Width

4.73 ft in

C

Overall Height - mast lowered

7.06 ft in

D

Wheelbase

6.01 ft in

E

Ground Clearance

3.94 in

F

Height to Top of Overhead Guard

7.4 ft in

G

Max Fork Height

7.75 ft in

MAST

H

Mast Tip Forward

6 degrees

I

Mast Tip Rear

9 degrees


Specifications

Engine

Engine Make

2374

Engine Model

V6

Power

92.5 hp

Torque

220 lb ft

Power Measured @

2450 rpm

Displacement

262402.2 cu in

Torque Measured @

1200 rpm

Fuel Type

gas

Operational

Operating Weight

20900 lb

Tire Type

cushion

Number of Front Wheels

2

Number of Rear Wheels

2

Max Speed

14.3 mph

MAST

Load Capacity

15432.4 lb

Load Center

23.7 in

Mast Tip Forward

6 degrees

Mast Tip Rear

9 degrees

Max Fork Spread

47.8 in

Lift Speed

77 ft/min

Lower Speed

77 ft/min

Dimensions

Wheelbase

6.1 ft in

Length to Fork Face

9.7 ft in

Overall Width

4.8 ft in

Overall Height - mast lowered

7.1 ft in

Max Fork Height

7.8 ft in

Turning Radius

8.5 ft in

Height to Top of Overhead Guard

7.4 ft in

Ground Clearance

4 in
