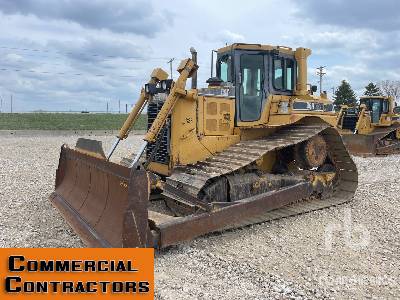

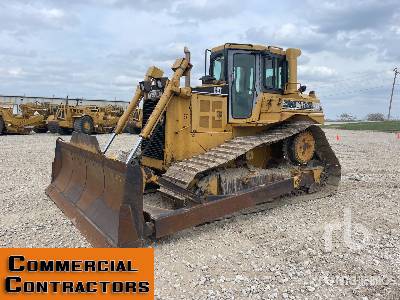

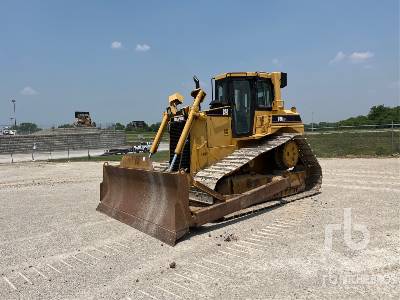

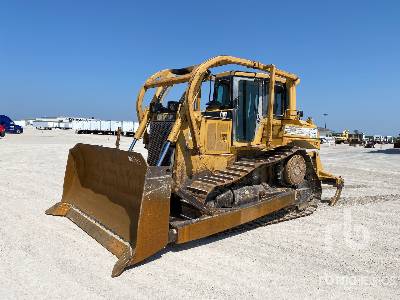

Caterpillar D6R Crawler Tractor

Crawler Tractor
Crawler Tractor
Crawler Tractor
Crawler Tractor
Crawler Tractor
Crawler Tractor
MODEL.UNITS

Dimensions

Dimensions

A

Length W/ Blade

16.09ft in

B

Width Over Tracks

8.01ft in

C

Height To Top Of Cab

10.49ft in

D

Length Of Track On Ground

8.57ft in

E

Ground Clearance

1.26ft in

F

Length W/O Blade

12.67ft in

Undercarriage

G

Track Gauge

6.17ft in

H

Standard Shoe Size

22.05in

Number Of Shoes Per Side

39

Ground Pressure

8.94psi

Ground Contact Area

4518in2

Number Of Track Rollers Per Side

6

Track Pitch

8in


Specifications

Engine

Number Of Cylinders

6

Engine Make

2236

Engine Model

3306

Gross Power

179hp

Net Power

165hp

Power Measured @

1900rpm

Displacement

638cu in

Aspiration

Turbocharged

Operational

Operating Weight

40000lb

Fuel Capacity

101.2gal

Cooling System Fluid Capacity

19.6gal

Engine Oil Capacity

7.3gal

Hydraulic Fluid Capacity

20.1gal

Powertrain Fluid Capacity

41gal

Final Drives Fluid Capacity

3.6gal

Operating Voltage

24V

Alternator Supplied Amperage

70amps

Transmission

Transmission Type

Power Shift

Number Of Forward Gears

3

Number Of Reverse Gears

3

Max Speed - Forward

7.4mph

Max Speed - Reverse

9.5mph

Hydraulic System

Pump Type

Piston Style

Relief Valve Pressure

2800psi

Pump Flow Capacity

50.2gal/min

Standard Blade

Width

11.1ft in

Height

49.5in

Capacity

5.1yd3

Cutting Depth

18.7in
