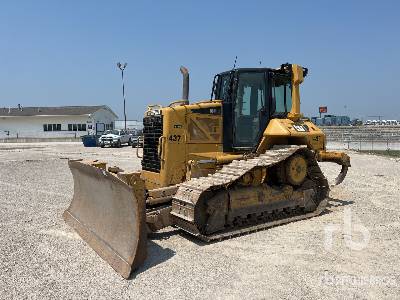

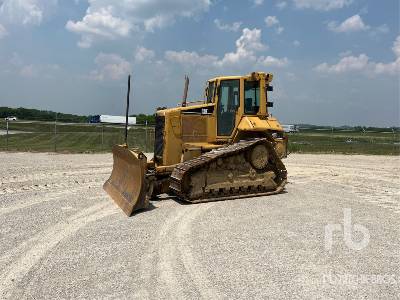

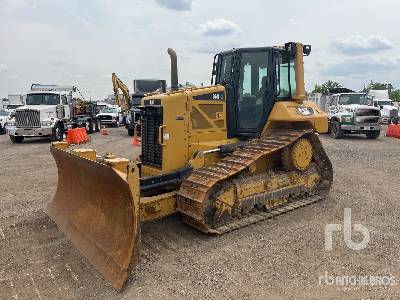

Caterpillar D6N XL Crawler Tractor

Crawler Tractor
Crawler Tractor
Crawler Tractor
Crawler Tractor
Crawler Tractor
Crawler Tractor
Units

Dimensions

Dimensions

B

Width Over Tracks

8.2ft in

C

Height to Top of Cab

10.2ft in

D

Length of Track on Ground

8.48ft in

E

Ground Clearance

1.4ft in

F

Length w/o Blade

12.27ft in

G

Track Gauge

6.21ft in

Undercarriage

G

Track Gauge

6.21ft in

H

Standard Shoe Size

24.01in


Specifications

Ripper

Beam Cross Section

216x254 mm 8.5x10.0 in

Number of Pockets

3

Maximum Penetration - XL

18.6in

Ripper Type

Fixed Parallelogram

Overall Beam Width

86.7in

Weight - Each Additional Shank

172lb

Engine

Number of Cylinders

6

Engine Make

2236

Engine Model

C6.6 ACERT

Net Power

145hp

Power Measured @

2200rpm

Displacement

439cu in

Bore

4.4in

Stroke

5in

Net Power - ISO 9249

145hp

Net Power - SAE J1349

143hp

Engine Model

Cat 3126B DITAAC

Flywheel Power

145hp

Net Power - EU 80/1269

145hp

Operational

Operating Weight

36610lb

Fuel Capacity

79gal

Cooling System Fluid Capacity

9.3gal

Hydraulic Fluid Capacity

7.8gal

Final Drives Fluid Capacity

1.9gal

Operating Voltage

12V

Alternator Supplied Amperage

70amps

Transmission

Transmission Type

powershift

Number of Forward Gears

3

Number of Reverse Gears

3

Max Speed - Forward

6.3mph

Max Speed - Reverse

7.5mph

1.0 Forward

2.1mph

2.0 Forward

3.6mph

3.0 Forward

6.3mph

1.0 Reverse

2.5mph

2.0 Reverse

4.3mph

3.0 Reverse

7.4mph

Drawbar Pull - 2.0 Forward

38800lb

Drawbar Pull - 3.0 Forward

21500lb

Drawbar Pull - 1.0 Forward

71000lb

Undercarriage

Ground Pressure

7.4psi

Ground Contact Area

4882in2

Standard Shoe Size

24.1in

Number of Shoes per Side

40

Number of Track Rollers per Side

7

Track Gauge

6.3ft in

Grouser Height

2.3in

Track Rollers/Side - LGP

8

Shoes/Side - XL

40

Track Rollers/Side - XL

7

Width - Shoe - XL

24in

Track on Ground - XL

100in

Track Gauge - XL

74in

Ground Contact Area - XL

4822in2

Shoes/Side - LGP

46

Ground Pressure - XL FTC

7.24 psi

Ground Pressure - XL DS

7.37 psi

Weights

Operating Weight

35020.4lb

Operating Weight - Power Shift FTC - XL

34361lb

Operating Weight - XL-DS

35020lb

Shipping Weight - XL FTC

33703lb

Shipping Weight - XL DS

34362lb

Standard Blade

Width

10.8ft in

Height

49in

Capacity

4.2yd3

Cutting Depth

20.5in

Dimensions

Height

9.5ft in

Track Gauge

6.3ft in

Length w/o Blade

12.3ft in

Width Over Tracks

8.2ft in

Height to Top of Cab

10.2ft in

Length of Track on Ground

8.5ft in

Ground Clearance

1.4ft in

Length - Track on Ground

100.4in

Height - ROPS/Canopy

10ft in

Width - Without Blade

98.2in

Overall Length - Basic Tractor - With Drawbar

12.3ft in

Drawbar Height (Center of Clevis) from Ground Face of Shoes

23.5in

Service Refill Capacities

Cooling System

10.8gal

Fuel Tank

79gal

Final Drive - Each

1.8gal

Hydraulic Tank

7.8gal

Blades

Blade Type

VPAT, SU

XL SU - Blade Width

10.5ft in

XL VPAT - Blade Capacity

4.2yd3

XL SU - Blade Capacity

5.6yd3

XL VPAT - Blade Width

10.8ft in

Winch

Flange Diameter

19.8in

Oil Capacity

19.6gal

Winch Model

PA55

Winch and Bracket Length

45.1in

Drum Diameter

10in

Drum Width

12.4in

Winch Case - Width

38.4in

Weight*

2814lb
