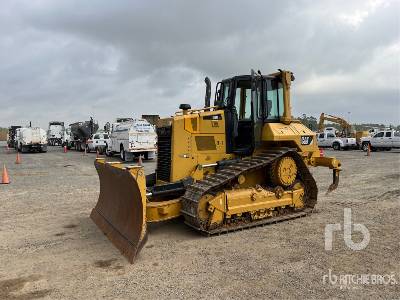

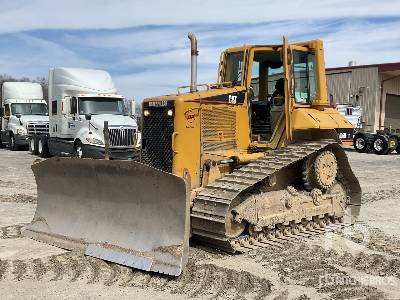

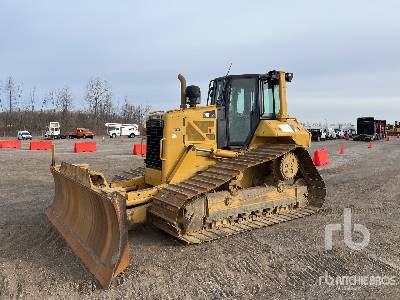

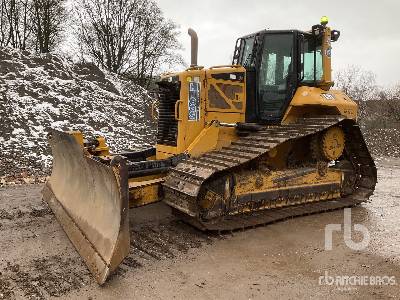

Caterpillar D6N Crawler Tractor

Crawler Tractor
Crawler Tractor
Crawler Tractor
Crawler Tractor
Crawler Tractor
Crawler Tractor
MODEL.UNITS

Dimensions

Blades

Width - Lgp Vpat

13.42ft in

Width - Lgp Vpat - Foldable

13.42ft in

Capacity - Lgp Vpat - Foldable

5.1yd3

Capacity - Xl Su

5.6yd3

Capacity - Xl Vpat

4.3yd3

Width - Xl Vpat

10.75ft in

Width - Xl Su

10.33ft in

Capacity - Lgp Vpat

5.1yd3

Dimensions

B

Width Over Tracks

8.18ft in

C

Height To Top Of Cab

10.12ft in

D

Length Of Track On Ground

8.37ft in

E

Ground Clearance

1.4ft in

Undercarriage

G

Track Gauge

6.21ft in

Note (2)

All dimensions with SystemOne undercarriage.

Number Of Shoes Per Side

40

Number Of Track Rollers Per Side

7

Shoe Width - Lgp

33.1in

Shoe Width - Xl

24in

Shoe Width - Xl - Fine Grading

24in

Shoes/Side - Lgp

46

Shoes/Side - Xl

40

Shoes/Side - Xl - Fine Grading

46

Track Gauge - Lgp

85in

Track Gauge - Xl

74.41in

Track Gauge - Xl - Fine Grading

74.41in

Track On Ground - Lgp

122.4in

Track On Ground - Xl

102.6in

Track On Ground - Xl - Fine Grading

122.4in

Track Rollers/Side - Lgp

8

Track Rollers/Side - Xl

7

Track Rollers/Side - Xl - Fine Grading

8

Ground Contact Area

4822in2

Ground Contact Area* - Lgp

8928in2

Ground Contact Area* - Xl

5518in2

Ground Contact Area* - Xl - Fine Grading

6479in2

Ground Pressure

7.24psi

Ground Pressure - Lgp*

4.5 psi

Ground Pressure - Xl*

6.7 psi

Ground Pressure* - Xl - Fine Grading

5.8 psi

Grouser Height - Lgp

2.21in

Grouser Height - Xl

2.6in

Grouser Height - Xl - Fine Grading

2.6in

Note (1)

*ISO 16754


Specifications

Ripper

Beam Cross Section

216 mm 254 mm (8.5 in 10.0 in)

Number Of Pockets

3

Maximum Penetration - Xl

20.2in

Maximum Penetration - Lgp

15.6in

Ripper Type

Fixed Parallelogram

Pocket Spacing

3.3ft in

Shank Gauge

6.6ft in

Shank Section

73 mm 176 mm (2.9 in 6.9 in)

Maximum Clearance Raised - Shank Tip

24.5in

Maximum Penetration Force - Xl

11600lb ft

Maximum Pry-Out Force - Xl

47480lb ft

Maximum Penetration Force - Lgp

9667lb ft

Maximum Pry-Out Force - Lgp

38217lb ft

Each Additional Shank

172lb

Weight - With Three Shanks

3444lb

Overall Beam Width

86.7in

Engine

Engine Make

2236

Engine Model

3126 DITAAC

Net Power

145hp

Displacement

433cu in

Bore

4.1in

Stroke

5.3in

Emissions

U.S. EPA Tier 4 Final/EU Stage IV/Korea Tier 4 Final

Engine Model

Cat C7.1 ACERT

Flywheel Power

166hp

Note (1)

Net power advertised is the power available at the engine flywheel when the engine is equipped with the air cleaner, muffler, alternator, cooling fan at maximum speed.

Note (2)

No derating required up to 3000 m (9,840 ft) altitude, beyond 3000 m (9,840 ft) automatic derating occurs.

Note (3)

All non-road Tier 4 Interim and Final, Stage IIIB and IV, and Korea Tier 4 Final diesel engines are required to use only Ultra Low Sulfur Diesel (ULSD) fuels containing 15 ppm EPA/10 ppm EU (mg/kg) sulfur or less. Biodiesel blends up to B20 (20% blend by volume) are acceptable when blended with 15 ppm (mg/kg) sulfur or less ULSD. B20 should meet ASTM D7467 specification (biodiesel blend stock should meet Cat biodiesel spec, ASTM D6751 or EN 14214). Cat DEO-ULS or oils that meet the Cat ECF-3, API CJ-4, and ACEA E9 specification are required. Consult your OMM for further machine specific fuel recommendations.

Note (4)

Diesel Exhaust Fluid (DEF) used in Cat Selective Catalytic Reduction (SCR) systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241.

Net Power - 1,800 Rpm - Iso 9249/Sae J1349 (Din)

168hp

Net Power - 1,800 Rpm - Iso 9249/Sae J1349

166hp

Engine Power - Maximum - At 2,200 Rpm - Sae J1995

182hp

Engine Power - Maximum - At 2,200 Rpm - Iso 14396

178hp

Engine Power - Maximum - At 2,200 Rpm - Iso 14396 (Din)

180hp

Operational

Operating Weight

34361lb

Fuel Capacity

79gal

Cooling System Fluid Capacity

10.8gal

Hydraulic Fluid Capacity

7.8gal

Final Drives Fluid Capacity

1.9gal

Transmission

Number Of Forward Gears

3

Number Of Reverse Gears

3

Max Speed - Forward

6.3mph

Max Speed - Reverse

7.4mph

1.0 Forward

2.1mph

2.0 Forward

3.6mph

3.0 Forward

6.1mph

1.0 Reverse

2.5mph

2.0 Reverse

4.4mph

3.0 Reverse

7.6mph

1.5 Forward

2.7mph

2.5 Forward

4.7mph

1.5 Reverse

3.4mph

2.5 Reverse

5.9mph

0.5 Forward

1.6mph

0.7 Forward

1.7mph

1.7 Forward

3mph

2.7 Forward

5.2mph

0.5 Reverse

1.9mph

0.7 Reverse

2.1mph

1.7 Reverse

3.7mph

2.7 Reverse

6.5mph

0.5 Forward (Eu)

1.5mph

0.7 Forward (Eu)

1.6mph

0.5 Reverse (Eu)

1.8mph

0.7 Reverse (Eu)

1.9mph

1.0 Reverse (Eu)

2.2mph

Maximum Drawbar Pull - 1.0 Forward

71939lb ft

Maximum Drawbar Pull - 2.0 Forward

44512lb ft

Maximum Drawbar Pull - 3.0 Forward

25403lb ft

1.0 Forward (Eu)

1.9mph

Weights

Operating Weight

36943lb

Note (1)

Operating Weight: Includes EROPS, A/C, lights, VPAT dozer, transmission, drawbar, engine enclosure, 3-valve hydraulics, 100% fuel, and Cat Comfort Series Air Suspension Seat and operator.

Note (2)

Shipping Weight: Includes EROPS, A/C, lights, VPAT dozer, transmission, drawbar, engine enclosure, 3-valve hydraulics, 5% fuel, and Cat Comfort Series Air Suspension Seat.

Operating Weight - Lgp

40446lb

Shipping Weight - Lgp

39339lb

Operating Weight - Xl Waste Handler

40818lb

Operating Weight - Lgp Waste Handler

44749lb

Shipping Weight - Xl Waste Handler

40029lb

Shipping Weight - Lgp Waste Handler

43642lb

Shipping Weight - Xl

36153lb

Operating Weight - Xl

36943lb

Xl Vpat Blade

2341lb

Lgp Vpat - Blade

2720lb

Xl Vpat Foldable

2762lb

Lgp Vpat - Foldable

3287lb

Xl Su - Blade

5732lb

Xl Vpat Landfill

2912lb

Multi-Shank Ripper - With 3 Shanks

2959lb

Lgp Vpat - Landfill

3166lb

Operating Weight - Xl Fine Grading

38162lb

Shipping Weight - Xl Fine Grading

37373lb

Standard Blade

Width

10.8ft in

Height

47.1in

Capacity

4.2yd3

Cutting Depth

21.2in

Service Refill Capacities

Cooling System

10.6gal

Fuel Tank

73.2gal

Def Tank

5gal

Final Drive - Each

1.8gal

Hydraulic Tank

7.8gal

Engine Crankcase

4.5gal

Power Train

42.3gal

Roller Frames Xl/Lgp - Each

20/17.5 L (4.3/4.6 gal)

Standards

Brakes

Brakes meet the standard ISO 10265:2008.

Rops

ROPS (Rollover Protective Structure) offered by Caterpillar for the machine meets ROPS criteria ISO 3471:2008.

Fops

FOPS (Falling Object Protective Structure) meets ISO 3449-2005 Level II.

Air Conditioning System

Air Conditioning

The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.6 kg of refrigerant which has a CO2 equivalent of 2.288 metric tonnes.

Hydraulic Controls - Pump

Lift Cylinder Flow

33.5 gal/min

Ripper Cylinder Flow

33.5 gal/min

Pump Output - Steering

36.2 gal/min

Pump Output - Implement

33.5 gal/min

Tilt Cylinder Flow

23.8 gal/min

Angle Cylinder Flow - Vpat

33.5 gal/min

Hydraulic Controls - Pressures

Maximum Implement Operating Pressure

3640 psi

Maximum Steering Operating Pressure

6556 psi

Sound And Vibration - Cab

Sound Level Information (1)

The operator Equivalent Sound Pressure Level (Leq) is 81.5 dB(A) when ANSI/SAE J1166 FEB2008 is used to measure the value for an enclosed cab. The measurement was conducted at 100% of the maximum engine cooling fan speed. This is a work cycle sound exposure level. The cab was properly installed and maintained. The test was conducted with the cab doors and the cab windows closed.

Sound Level Information (2)

Hearing protection may be needed when the machine is operated with an open operator station for extended periods or in a noisy environment. Hearing protection may be needed when the machine is operated with a cab that is not properly maintained, or when the doors and windows are open for extended periods or in a noisy environment.

Sound Level Information (3)

The average exterior sound pressure level is 85.5 dB(A) when the SAE J88 FEB2006 Constant Speed Moving Test procedure is used to measure the value for the standard machine. The measurement was conducted under the following conditions: distance of 15 m (49.2 ft) and the machine moving forward in an intermediate gear ratio.

Specification Name Too Long

If equipped, the certification label 110 dB(A) is used to verify the environmental sound certification of the machine to the requirements of the European Union. The value that is listed on the label indicates the guaranteed exterior sound power level (LWA) at the time of manufacture for the conditions that are specified in 2000/14/EC. Your machine may have a different value.

Sustainability - Sound And Vibration Levels

Sound Levels - Average Exterior Sound Pressure Level - Sae J88:2006

85.5 dB(A)

Sound Levels - Dynamic Operator Sound Pressure Level (Lpa) - Iso 6396:2008

76 dB(A)

Sound Levels - Maximum Sound Power Level - 2000/14/Ec

110 dB(A)

Vibration Levels - Maximum Hand/Arm* - Iso 5349:2001

2.5 m/s2 (8.2 ft/s2)

Vibration Levels - Maximum Whole Body* - Iso/Tr25398:2006

0.5 m/s2 (1.6 ft/s2)

Vibration Levels - Seat Transmissibility Factor - Iso 7096:2000 - Spectral Class Em6

Less Than 0.7

Note

*Values are for an experienced operator in a dozing application, consult the Operating and Maintenance Manual for details.

Winch

Flange Diameter

19.8in

Oil Capacity

19.6gal

Winch Model

PA55

Winch And Bracket Length

45.1in

Drum Capacity - 22 Mm (0.88 In)

288.8ft in

Winch Drive

Mechanical

Control

Electric

Overall Width

38.4in

Drum Diameter

10in

Drum Width

12.4in

Rope Diameter - Recommended

0.9in

Cable Ferrule Size - O.D. Length

54 mm 67 mm (2.13 in 2.63 in)

Maximum Bare Drum - Line Speed

141 ft/min

Maximum Full Drum - Line Speed

217 ft/min

Maximum Bare Drum - Line Pull*

69200lb

Maximum Full Drum - Line Pull*

44410lb

Winch Case - Width

38.4in

Weight*

2814lb

Note (1)

*Weight: Includes pump, operator controls, oil, mounting brackets and spacers.

Note (2)

Slow and standard speed winches are available.
