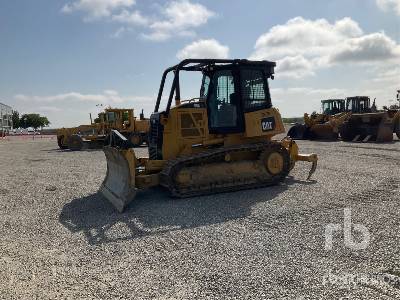

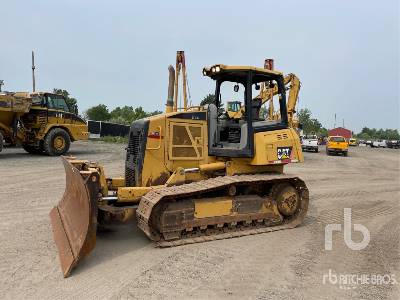

Caterpillar D6K XL Crawler Tractor

Caterpillar D6K XL Crawler Tractor Specs front
Caterpillar D6K XL Crawler Tractor Specs front
Caterpillar D6K XL Crawler Tractor Specs side
Caterpillar D6K XL Crawler Tractor Specs side
Caterpillar D6K XL Crawler Tractor Specs back
Caterpillar D6K XL Crawler Tractor Specs back
Units

Dimensions

Dimensions

A

Length w/ Blade

16.34 ft in

B

Width Over Tracks

7.64 ft in

C

Height to Top of Cab

9.7 ft in

D

Length of Track on Ground

8.67 ft in

E

Ground Clearance

1.18 ft in

F

Length w/o Blade

12.41 ft in

Undercarriage

G

Track Gauge

5.81 ft in

H

Standard Shoe Size

22 in


Specifications

Engine

Number of Cylinders

6

Engine Make

2236

Engine Model

C6.6 ACERT

Net Power

125 hp

Power Measured @

2100 rpm

Displacement

403 cu in

Operational

Operating Weight

28409 lb

Fuel Capacity

77.9 gal

Cooling System Fluid Capacity

6.4 gal

Engine Oil Capacity

4.4 gal

Hydraulic Fluid Capacity

15.3 gal

Final Drives Fluid Capacity

4 gal

Operating Voltage

24 V

Alternator Supplied Amperage

95 amps

Transmission

Transmission Type

Hydrostatic

Max Speed - Forward

6.3 mph

Max Speed - Reverse

6.3 mph

Undercarriage

Ground Pressure

6.2 psi

Ground Contact Area

4650 in2

Standard Shoe Size

22 in

Number of Shoes per Side

40

Number of Track Rollers per Side

7

Track Gauge

5.9 ft in

Standard Blade

Width

10 ft in

Height

44.9 in

Capacity

3.5 yd3

Cutting Depth

18.7 in

Dimensions

Length w/o Blade

12.5 ft in

Length w/ Blade

16.4 ft in

Width Over Tracks

7.7 ft in

Height to Top of Cab

9.7 ft in

Length of Track on Ground

8.7 ft in

Ground Clearance

1.2 ft in
