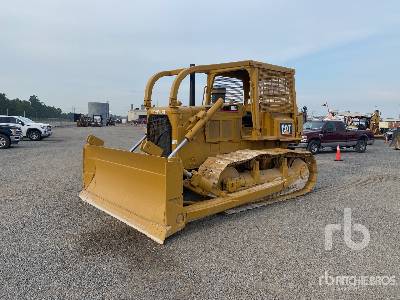

Caterpillar D6D SA Crawler Tractor
Units
Dimensions
Dimensions
B
Width Over Tracks
7.85ft in
C
Height To Top Of Cab
9.42ft in
D
Length Of Track On Ground
7.75ft in
E
Ground Clearance
1.02ft in
F
Length W/O Blade
13ft in
Undercarriage
G
Track Gauge
6.17ft in
H
Standard Shoe Size
20.08in
Number Of Track Rollers Per Side
6
Ground Contact Area
3720.01in2
Specifications
Engine
Engine Make
2236
Engine Model
3306
Gross Power
165hp
Displacement
640.8cu in
Operational
Operating Weight
28990.8lb
Fuel Capacity
115gal
Transmission
Transmission Type
direct drive
Number Of Forward Gears
6
Number Of Reverse Gears
5
Max Speed - Forward
5.6mph
Max Speed - Reverse
6.3mph
Standard Blade
Cutting Depth
9.1in
