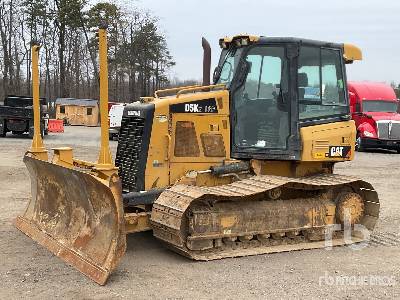

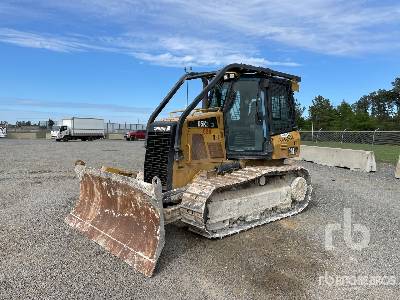

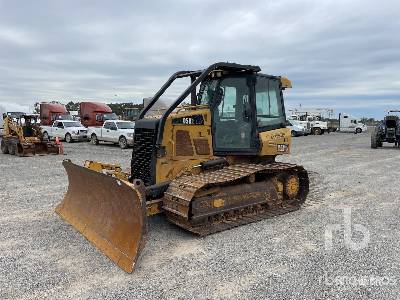

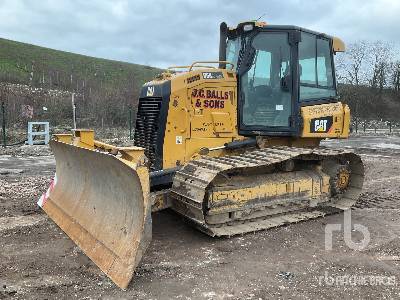

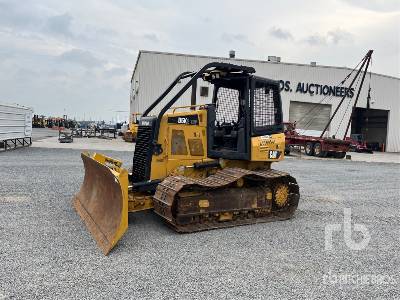

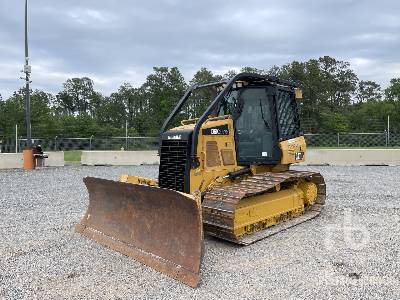

Caterpillar D5K2 Crawler Tractor
Units
Dimensions
Dimensions
A
Length W/ Blade
170ft in
B
Width Over Tracks
94.9ft in
C
Height To Top Of Cab
109ft in
D
Length Of Track On Ground
128.5ft in
F
Length W/O Blade
128.5ft in
Undercarriage
Ground Pressure - Lgp
4.5 psi
Ground Pressure - Lgp With 770 Mm (30 In) Shoes
3.93 psi
Ground Pressure - Xl
5.6 psi
Length - Track On Ground - Lgp
91in
Length - Track On Ground - Xl
91in
Shoe Width - Lgp
26in
Shoe Width - Lgp Option 2
30in
Shoe Width - Xl
20in
Track Gauge - Lgp
69in
Track Gauge - Lgp, 770 Mm (30 In)
73.2in
Track Gauge - Xl
63in
Ground Contact Area - Lgp With 770 Mm (30 In) Shoes
5514in2
Ground Contact Area - Lgp
4726in2
Ground Contact Area - Xl
3652in2
Ground Pressure
2988psi
Specifications
Ripper
Ripper Type
Parallelogram
Number Of Shanks
3
Maximum Digging Depth
13.3in
Maximum Reach - Ground Line
21.9in
Maximum Ground Clearance Under Tip
17.6in
Overall Width
67.3in
Height
6.5in
Weight
1222lb
Engine
Engine Make
2236
Engine Model
Cat C4.4 Acert
Gross Power
104hp
Net Power
104hp
Power Measured @
2200rpm
Displacement
269cu in
Bore
4.2in
Stroke
5in
Engine Model
Cat C4.4 ACERT
Eec 80/1269
104hp
Sae J1349
104hp
Iso 9249
104hp
Power - Net
104hp
Operational
Operating Weight
20313lb
Fuel Capacity
51.5gal
Cooling System Fluid Capacity
6gal
Engine Oil Capacity
4.9gal
Hydraulic Fluid Capacity
15.7gal
Powertrain Fluid Capacity
3gal
Final Drives Fluid Capacity
2.6gal
Transmission
Transmission Type
2
Max Speed - Forward
5.6mph
Max Speed - Reverse
6.2mph
Drive Pumps
2
Track Motors
2
Relief Valve Settings
6918 psi
Maximum Travel Speed - Forward
5.6mph
Maximum Travel Speed - Reverse
6.2mph
Weights
Operating Weight - Lgp
21266lb
Operating Weight - Xl
20534lb
Blade
Blade Width - Xl
109.5in
Blade Width - Intermediate
115in
Blade Width - Lgp
126.7in
Blade Height - Xl
42.2in
Blade Height - Intermediate
39.8in
Blade Height - Lgp
39.8in
Blade Capacity - Xl
2.9yd3
Blade Capacity - Intermediate
2.8yd3
Blade Capacity - Lgp
3.1yd3
Digging Depth - Xl
23.1in
Digging Depth - Intermediate
22.5in
Digging Depth - Lgp
22.5in
Standard Blade
Width
109.5ft in
Blade Angle (Both Directions)
75degrees
Service Refill Capacities
Cooling System
6gal
Fuel Tank
51.5gal
Final Drive - Each - Lgp
2.6gal
Final Drive - Each - Xl
2.6gal
Crankcase - With Filter
3gal
Transmission - Hydraulic Tank
15.7gal
Standards
Rops
SAE J397-OCT95, SAE J1040-MAY94, ISO 3471-94, ISO 3164-95
Fops
SAE J231-JAN81, ISO 3449-92
Hydraulic Controls
Pump Output
19.4 gal/min
Relief Valve Setting
2988 psi
Winch
Winch Drive
Hydrostatic
Control
Hydraulic
Overall Width
29.2in
Drum Diameter
10in
Drum Width
10.8in
Rope Diameter - Recommended
0.7in
Weight
1345lb
Rope Diameter - Optional
0.8in
Speed
Variable
Winch Length
27.8in
Throat Clearance
6.8in
Drum Capacity - Recommended Cable
371ft in
Drum Capacity - Optional Cable
256ft in
Maximum Line Pull - Bare Drum
40000lb
Maximum Line Pull - Full Drum
25000lb
Maximum Line Speed - Bare Drum
131 ft/min
Maximum Line Speed - Full Drum
207 ft/min
