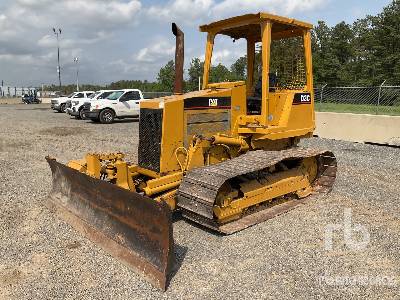

Caterpillar D3C LGP Series II Crawler Tractor

Crawler Tractor
Crawler Tractor
Crawler Tractor
Crawler Tractor
Crawler Tractor
Crawler Tractor
Units

Dimensions

Dimensions

A

Length w/ Blade

13.36 ft in

B

Width Over Tracks

7.52 ft in

C

Height to Top of Cab

8.75 ft in

D

Length of Track on Ground

6.75 ft in

E

Ground Clearance

0.97 ft in

F

Length w/o Blade

9.84 ft in

Undercarriage

G

Track Gauge

5.42 ft in

H

Standard Shoe Size

25 in


Specifications

Engine

Number of Cylinders

4

Engine Make

2236

Engine Model

3204

Gross Power

76 hp

Net Power

70 hp

Power Measured @

2400 rpm

Displacement

317.4 cu in

Operational

Operating Weight

17169.7 lb

Fuel Capacity

32 gal

Cooling System Fluid Capacity

5.3 gal

Engine Oil Capacity

3.2 gal

Hydraulic Fluid Capacity

15 gal

Final Drives Fluid Capacity

3.2 gal

Operating Voltage

12 V

Alternator Supplied Amperage

40 amps

Transmission

Transmission Type

Planetary powershift

Number of Forward Gears

3

Number of Reverse Gears

3

Max Speed - Forward

6.7 mph

Max Speed - Reverse

7.1 mph

Undercarriage

Ground Pressure

4.1 psi

Ground Contact Area

4051 in2

Standard Shoe Size

25 in

Number of Shoes per Side

39

Number of Track Rollers per Side

5

Track Gauge

5.5 ft in

Hydraulic System

Pump type

Single-section gear

Relief Valve Pressure

2500 psi

Pump Flow Capacity

14.5 gal/min

Standard Blade

Width

10.4 ft in

Height

29.5 in

Capacity

1.7 yd3

Blade Angle (both directions)

25 degrees

Cutting Depth

16.7 in

Dimensions

Length w/o Blade

9.9 ft in

Length w/ Blade

13.4 ft in

Width Over Tracks

7.6 ft in

Height to Top of Cab

8.8 ft in

Length of Track on Ground

6.8 ft in

Ground Clearance

1 ft in
