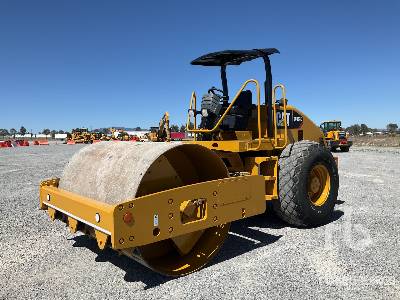

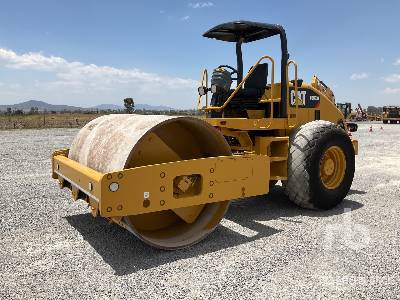

Caterpillar CS433E Vibratory Smooth Drum Roller
Units
Dimensions
Dimensions
A
Overall Length
16.28in
B
Overall Width
5.42ft in
C
Height To Top Of Cab
9.75ft in
D
Wheelbase
8.54in
E
Ground Clearance
15.87in
Specifications
Engine
Engine Make
2236
Engine Model
3054C
Gross Power
100.6hp
Net Power
96.6hp
Displacement
268.6cu in
Operational
Operating Weight
15410.4lb
Fuel Capacity
42.3gal
Cooling System Fluid Capacity
4.8gal
Engine Oil Capacity
1.8gal
Hydraulic System Fluid Capacity
15.9gal
Max Speed
7.2mph
Tires *If Applicable
14.9x24
Operating Voltage
24V
Alternator Supplied Amperage
55amps
Drum
Drum Width
66in
Drum Diameter
48.3in
Static Linear Load
288.8lb/in
Vibration Frequency 1
31.9Hz
Nominal Amplitude - High
0.1in
Nominal Amplitude - Low
0.1in
Centrifugal Force - High
30124.4lb
Centrifugal Force - Low
15062.2lb
