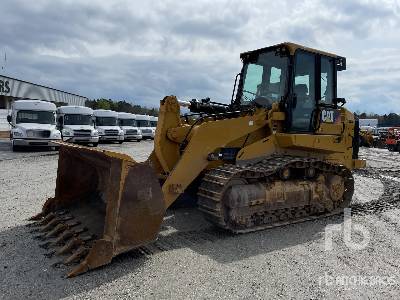

Caterpillar 963 LGP Crawler Loader
Units
Dimensions
Dimensions
A
Length With Bucket On Ground
20.83ft in
E
Ground Clearance
1.45ft in
B
Width To Outside Of Tracks
7.88ft in
C
Height To Top Of Cab
10.83ft in
G
Clearance At Full Height And Dump
10.3ft in
H
Reach At Dump Height
3.84ft in
Undercarriage
I
Track Gauge
72.84in
D
Length Of Track On Ground
8.06ft in
Number Of Track Rollers Per Side
6
Ground Contact Area
4185.01in2
Ground Pressure
9.75psi
Track Shoe Width
21.66in
Specifications
Engine
Engine Make
2236
Engine Model
3304
Net Power
150.2hp
Displacement
427.2cu in
Operational
Operating Weight
41092lb
Fuel Capacity
69gal
Hydraulic System Fluid Capacity
15.9gal
Static Tipping Load
27165.4lb
Breakout Force - Std Bucket
38227lb
Bucket Capacity - Struck
2.2yd3
Bucket Capacity - Heaped
2.7yd3
Max Speed
6.3mph
Hydraulic
Raise Time
6.2sec
Dump Time
1.3sec
Lower Time
2.3sec
