Caterpillar 950F Wheel Loader

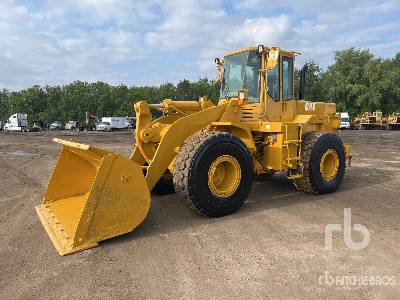

Caterpillar 950F Wheel Loader Specs front
Caterpillar 950F Wheel Loader Specs front

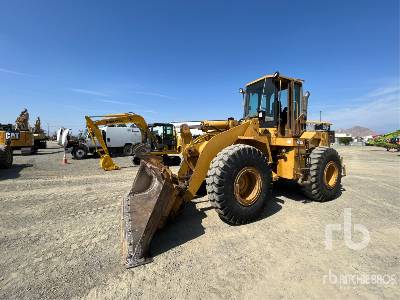

Caterpillar 950F Wheel Loader Specs side
Caterpillar 950F Wheel Loader Specs side

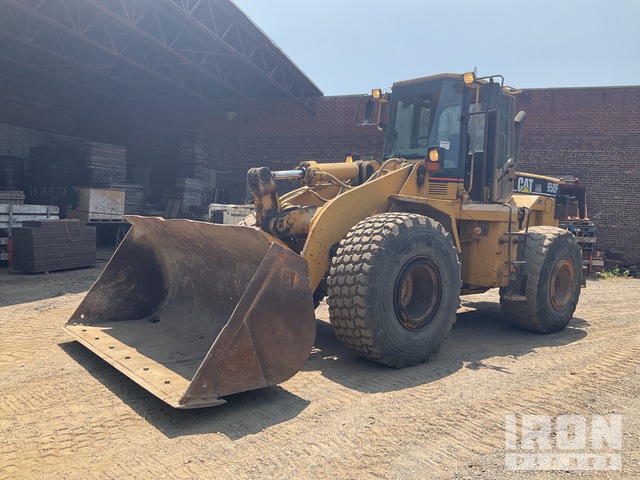

Caterpillar 950F Wheel Loader Specs back
Caterpillar 950F Wheel Loader Specs back
Units

Dimensions

Bucket

G

Dump Clearance at Max Raise

9.65 ft in

Dimensions

A

Length with Bucket on Ground

25.23 ft in

B

Width Over Tires

9.04 ft in

C

Height to Top of Cab

11.55 ft in

D

Wheelbase

10.44 ft in

E

Ground Clearance

1.56 ft in

F

Hinge Pin - Max Height

12.97 ft in

H

Reach at Max Lift and Dump

3.62 ft in


Specifications

Engine

Number of Cylinders

6

Engine Make

2236

Engine Model

3116

Net Power

170 hp

Gross Power

180 hp

Power Measured @

2200 rpm

Displacement

402.8 cu in

Aspiration

Turbocharged

Operational

Operating Weight

34678.8 lb

Fuel Capacity

58.7 gal

Hydraulic System Fluid Capacity

40.5 gal

Engine Oil Fluid Capacity

5.3 gal

Cooling System Fluid Capacity

13 gal

Transmission Fluid Capacity

9 gal

Front Axle/Diff Fluid Capacity

9.6 gal

Rear Axle/Diff Fluid Capacity

9.6 gal

Static Tipping Weight

23243.4 lb

Turning Radius

21.1 ft in

Operating Voltage

24 V

Alternator Supplied Amperage

50 amps

Rear Axle Oscillation

26 degrees

Tire Size

23.5-25 12PR

Transmission

Transmission Type

Planetary powershift

Number of Forward Gears

4

Number of Reverse Gears

4

Max Speed - Forward

24.4 mph

Max Speed - Reverse

26.7 mph

Hydraulic System

Relief Valve Setting

3000

Pump Flow Capacity

62.7 gal/min

Raise Time

6.6 sec

Dump Time

2.2 sec

Lower Time

3 sec

Bucket

Breakout Force

35801 lb

Dump Clearance at Max Raise

9.7 ft in

Bucket Width

9.3 ft in

Bucket Capacity - heaped

3.8 yd3

Bucket Capacity - struck

3.4 yd3

Dimensions

Length with Bucket on Ground

25.3 ft in

Width Over Tires

9.1 ft in

Height to Top of Cab

11.6 ft in

Ground Clearance

1.6 ft in

Wheelbase

10.5 ft in

Hinge Pin - Max Height

13 ft in

Reach at Max Lift and Dump

3.7 ft in
