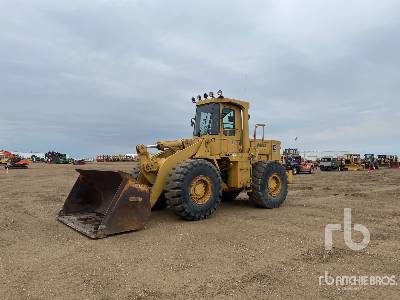

Caterpillar 950B Wheel Loader

Caterpillar 950B Wheel Loader Specs front
Caterpillar 950B Wheel Loader Specs front
Caterpillar 950B Wheel Loader Specs side
Caterpillar 950B Wheel Loader Specs side
Caterpillar 950B Wheel Loader Specs back
Caterpillar 950B Wheel Loader Specs back
Units

Dimensions

Bucket

G

Dump Clearance at Max Raise

9.68 ft in

Dimensions

A

Length with Bucket on Ground

23.77 ft in

B

Width Over Tires

8.76 ft in

C

Height to Top of Cab

11.39 ft in

D

Wheelbase

10.44 ft in

E

Ground Clearance

1.41 ft in

H

Reach at Max Lift and Dump

3.42 ft in


Specifications

Engine

Engine Make

2236

Engine Model

3304

Net Power

156.9 hp

Displacement

427.2 cu in

Operational

Operating Weight

32408 lb

Fuel Capacity

58.7 gal

Hydraulic System Fluid Capacity

40.5 gal

Static Tipping Weight

22839.9 lb

Turning Radius

22.6 ft in

Transmission

Number of Forward Gears

4

Number of Reverse Gears

4

Max Speed - Forward

22.7 mph

Max Speed - Reverse

24.5 mph

Hydraulic System

Raise Time

6.6 sec

Dump Time

2.2 sec

Lower Time

3 sec

Bucket

Breakout Force

Dump Clearance at Max Raise

9.7 ft in

Bucket Width

9.1 ft in

Bucket Capacity - heaped

3.8 yd3

Bucket Capacity - struck

2.7 yd3

Dimensions

Length with Bucket on Ground

23.8 ft in

Width Over Tires

8.8 ft in

Height to Top of Cab

11.4 ft in

Ground Clearance

1.5 ft in

Wheelbase

10.5 ft in

Reach at Max Lift and Dump

3.5 ft in
