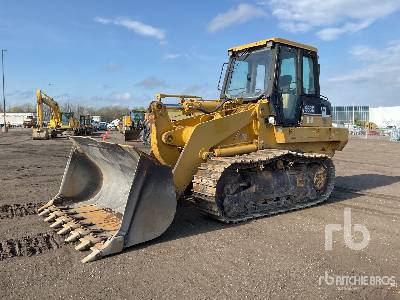

Caterpillar 943 LGP Crawler Loader
Units
Dimensions
Dimensions
A
Length With Bucket On Ground
17.81ft in
E
Ground Clearance
1.11ft in
B
Width To Outside Of Tracks
6.76ft in
C
Height To Top Of Cab
9.91ft in
G
Clearance At Full Height And Dump
8.77ft in
H
Reach At Dump Height
2.83ft in
Undercarriage
I
Track Gauge
66.93in
D
Length Of Track On Ground
7.06ft in
Number Of Track Rollers Per Side
6
Ground Contact Area
3069.01in2
Ground Pressure
8.48psi
Track Shoe Width
18.12in
Specifications
Engine
Engine Make
2236
Engine Model
3204
Net Power
80hp
Displacement
317.4cu in
Operational
Operating Weight
26208.6lb
Fuel Capacity
42.1gal
Hydraulic System Fluid Capacity
15.4gal
Static Tipping Load
17707.6lb
Breakout Force - Std Bucket
21139lb
Bucket Capacity - Struck
1.3yd3
Bucket Capacity - Heaped
1.6yd3
Max Speed
6mph
Hydraulic
Raise Time
7.2sec
Dump Time
1.6sec
Lower Time
2.2sec
