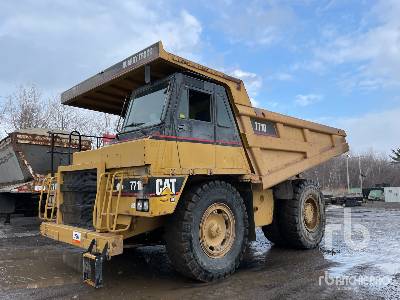

Caterpillar 771D Rock Truck

Caterpillar 771D Rock Truck Specs front
Caterpillar 771D Rock Truck Specs front
Caterpillar 771D Rock Truck Specs side
Caterpillar 771D Rock Truck Specs side
Caterpillar 771D Rock Truck Specs back
Caterpillar 771D Rock Truck Specs back
Units

Dimensions

Dimensions

A

Overall Length

26.91 ft in

B

Overall Width

12.01 ft in

C

Overall Height

12.11 ft in

D

Wheelbase

12.19 ft in

E

Ground Clearance

1.97 ft in

F

Dump Height

25.38 ft in

G

Dump Ground Clearance

1.53 ft in


Specifications

Engine

Engine Make

2236

Engine Model

3408ETA

Gross Power

510 hp

Net Power

485 hp

Displacement

1098.5 cu in

Operational

Fuel Capacity

140.1 gal

Tire Size

18R33 (E-4)

Transmission

Number of Gears - Forward

6

Max Speed

35.5 mph

Weights

Empty Weight

76610.7 lb

Loaded Weight

166890 lb

Weight Distribution Front - empty

49.8 %

Weight Distribution Rear - empty

50.2 %

Weight Distribution Front - loaded

33.3 %

Weight Distribution Rear - loaded

66.7 %

Dump

Rated Payload

90279.3 lb

Load Capacity - Struck

26.5 yd3

Load Capacity - heaped

36 yd3

Dimensions

Overall Length

27 ft in

Overall Width

12.1 ft in

Overall Height

12.2 ft in

Wheelbase

12.2 ft in

Ground Clearance

2 ft in

Dump Height

25.4 ft in

Dump Ground Clearance

1.6 ft in
