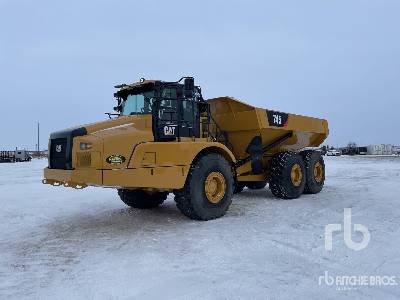

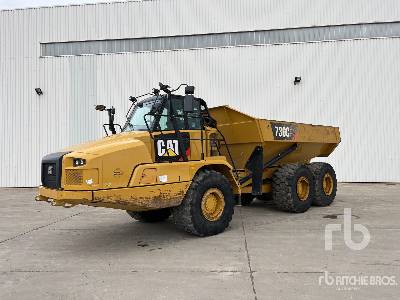

Caterpillar 740C EJ Articulated Dump Truck

Articulated Dump Truck
Articulated Dump Truck
Articulated Dump Truck
Articulated Dump Truck
Articulated Dump Truck
Articulated Dump Truck
Units

Dimensions

Dump

Rated Payload

84000lb

Capacity - Heaped

30.1yd3

Capacity - Struck

23.5yd3


Specifications

Engine

Engine Make

2236

Engine Model

C18 Acert

Gross Power

511hp

Net Power

496hp

Torque Measured @

1200rpm

Displacement

1106cu in

Bore

5.7in

Stroke

7.2in

Net Power - Sae J1349

496hp

Gross Power - Sae J1995

511hp

Engine Model

Cat C18 ACERT

Net Power - Iso 14396

504hp

No Engine De-Rating Required Below

10000ft in

Peak Engine Torque Gross (Sae J1995)

1931lb ft

Peak Engine Torque Speed

1200rpm

Peak Engine Torque Net (Sae J1349)

1887lb ft

Engine Model - U.S. Epa Tier 4 Final/Eu Stage Iv/Japan 2014 (Tier 4 Final)/Korea Tier 4 Final

Cat C18 ACERT

Operational

Cooling System Fluid Capacity

23.7gal

Transmission Fluid Capacity

19.8gal

Transmission

Number Of Forward Gears

9

Number Of Reverse Gears

2

Forward - 1

3.8mph

Forward - 2

5mph

Forward - 3

7mph

Forward - 4

8.8mph

Forward - 5

11.6mph

Forward - 6

14.2mph

Forward - 7

19.6mph

Reverse - 1

4mph

Reverse - 2

9.1mph

Steering

Lock To Lock

4.6 seconds @ 60 rpm

Transmission

Forward - 8

23.5mph

Forward - 9

34mph

Weights

Front Axle - Empty

45239lb

Center Axle - Empty

17416%

Rear Axle - Empty

16865lb

Front Axle - Loaded

3527%

Center Axle - Loaded

40124%

Rear Axle - Loaded

40124lb

Total Empty

79521lb

Total Loaded

163296lb

Service Refill Capacities

Cooling System

23.7gal

Fuel Tank

145.3gal

Def Tank

6.6gal

Final Drive - Each

1.3gal

Engine Crankcase

13.7gal

Brake Cooling Tank

17.7gal

Steering/Hoist Hydraulic System

36.9gal

Transmission - Otg

19.8gal

Axles - Each

15.8gal

Standards

Cab - Fops

ISO 3449 Level II-2005

Cab - Rops

ISO 3471-2008

Brakes

ISO 3450-2011

Steering

ISO 5010-2007

Operating Weights

Front Axle - Empty

45239lb

Center Axle - Empty

17416lb

Rear Axle - Empty

16865lb

Total - Empty

79521lb

Front Axle - Rated Load

3527lb

Center Axle - Rated Load

40124lb

Rear Axle - Rated Load

40124lb

Total - Rated Load

83776lb

Front Axle - Loaded

48766lb

Center Axle - Loaded

57541lb

Rear Axle - Loaded

56989lb

Total - Loaded

163296lb

Sound Levels

Interior Cab

79 dB(A)

Turning Circle

Note

Dimensions are for machines equipped with 29.5R25 tires.

Turning Dimensions - Sae Turning Radius

340in

Turning Dimensions - Clearance Radius

358in

Turning Dimensions - Inside Radius

174in

Turning Dimensions - Aisle Width

235in

Body Capacities

Heaped (Sae 2:1)

30.1yd3

Struck

23.5yd3

Body Hoist

Eject Time

17 s

Retract Time

20 s

Body Plate

Body Plate Type

High strength Brinell HB450 wear resistant steel
