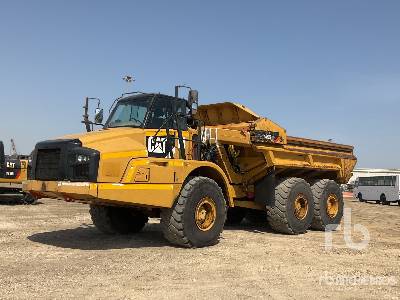

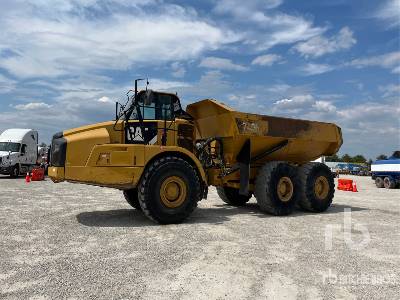

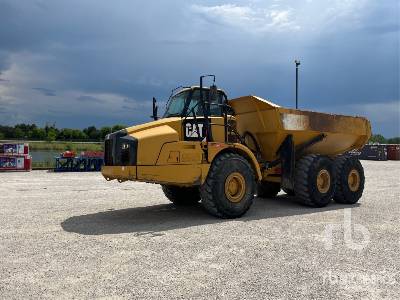

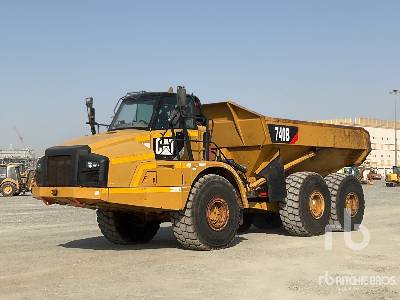

Caterpillar 740B Articulated Dump Truck

Articulated Dump Truck
Articulated Dump Truck
Articulated Dump Truck
Articulated Dump Truck
Articulated Dump Truck
Articulated Dump Truck
Units

Dimensions

Dimensions

A

Overall Length

36.09 ft in

B

Overall Width

12.37 ft in

C

Overall Height

13.26 ft in

D

Wheelbase

17.16 ft in

E

Ground Clearance

1.9 ft in

F

Dump Height

23.27 ft in

G

Dump Ground Clearance

2.29 ft in

Dump

H

Dump Angle

70 degrees


Specifications

Engine

Engine Make

2236

Engine Model

C15

Gross Power

489 hp

Net Power

474 hp

Power Measured @

1700 rpm

Displacement

926 cu in

Max Torque

1819 lb ft

Torque Measured @

1200 rpm

Bore

5.4 in

Stroke

6.8 in

Net Power - ISO 9249

477 hp

Net Power - SAE J1349

474 hp

Gross Power - SAE J1995

489 hp

Engine Model

Cat C15 ACERT

Net Power - ISO 14396

484 hp

Net Power - EEC 80/1269

477 hp

Engine Model Tier 4 Interim/EU Stage IIIB

Cat C15 ACERT

Engine Model - Tier 2 EU Stage II

Cat C15 ACERT

Operational

Fuel Capacity

148 gal

Hydraulic System Fluid Capacity

86.7 gal

Cooling System Fluid Capacity

21.2 gal

Engine Oil Capacity

10.1 gal

Transmission Fluid Capacity

19.1 gal

Tire Size

29.5R25

Transmission

Number of Forward Gears

7

Number of Reverse Gears

2

Max Speed

34 mph

Forward - 1

5.5 mph

Forward - 2

7.5 mph

Forward - 3

10.2 mph

Forward - 4

13.7 mph

Forward - 5

18.6 mph

Forward - 6

25.1 mph

Forward - 7

34 mph

Reverse - 1

5.2 mph

Reverse - 2

7.2 mph

Steering

Lock to Lock

4.6 seconds @ 60 rpm

Weights

Front Axle - empty

45556 lb

Center Axle - empty

15937 %

Rear Axle - empty

14328 lb

Front Axle - loaded

57045 %

Center Axle - loaded

53826 %

Rear Axle - loaded

52216 lb

Total Empty

75824 lb

Total Loaded

163087 lb

Dump

Rated Payload

87082.6 lb

Capacity - Struck

24.2 yd3

Capacity - Heaped

31.4 yd3

Dump Angle

70 degrees

Raise Time

12 sec

Lower Time

7 sec

Dimensions

Overall Length

36.1 ft in

Overall Width

12.4 ft in

Overall Height

13.3 ft in

Wheelbase

17.2 ft in

Ground Clearance

1.9 ft in

Dump Height

23.3 ft in

Dump Ground Clearance

2.3 ft in

Service Refill Capacities

Cooling System

21.1 gal

Fuel Tank

149.3 gal

Engine Crankcase

9 gal

Transmission

19 gal

Hydraulic System

85 gal

Final Drives/Differential

60.8 gal

Output Transfer Gear Box

4.8 gal

Standards

Cab - FOPS

ISO 3449 Level II - 2005

Cab - ROPS

ISO 3471 - 2008

Brakes

ISO 3450 - 1996

Steering

ISO 5010 - 2007

Operating Weights

Front Axle - Empty

45737 lb

Center Axle - Empty

15864 lb

Rear Axle - Empty

14255 lb

Total - Empty

75857 lb

Front Axle - Rated Load

11488 lb

Center Axle - Rated Load

37889 lb

Rear Axle - Rated Load

37889 lb

Total - Rated Load

87263 lb

Front Axle - Loaded

57223 lb

Center Axle - Loaded

53753 lb

Rear Axle - Loaded

52144 lb

Total - Loaded

163120 lb

Sound Levels

Interior Cab

79 dB(A)

Turning Circle

Note

Dimensions are for machines equipped with 29.5R25 tires.

Turning Dimensions - Steer Angle - Left/Right

45 degrees

Turning Dimensions - SAE Turning Radius

320.4 in

Turning Dimensions - Clearance Radius

338.4 in

Turning Dimensions - Inside Radius

161.5 in

Turning Dimensions - Aisle Width

224.2 in

Body Capacities

Heaped (SAE 2:1)

31.4 yd3

Struck

24.2 yd3

Tailgate Struck

25.5 yd3

Tailgate Heaped SAE 2:1

33.5 yd3

Body Hoist

Raise Time

12 s

Lower Time

7 s

Body Plate Thickness

Front

0.4 in

Scow

0.7 in

Side

0.5 in

Base

0.7 in
