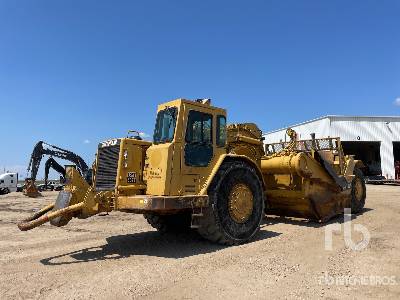

Caterpillar 637E Series II Motor Scraper

Caterpillar 637E Series II Motor Scraper Specs front
Caterpillar 637E Series II Motor Scraper Specs front
Caterpillar 637E Series II Motor Scraper Specs side
Caterpillar 637E Series II Motor Scraper Specs side
Caterpillar 637E Series II Motor Scraper Specs back
Caterpillar 637E Series II Motor Scraper Specs back
Units

Dimensions

Dimensions

A

Overall Length

47.77 ft in

B

Overall Width

12.93 ft in

C

Overall Height

14.08 ft in

D

Wheelbase

28.78 ft in


Specifications

Tractor Engine

Model

3408TA

Gross Power

490 hp

Net Power

450 hp

Displacement

1098.5 cu in

Scraper Engine

Model

3306TA

Gross Power

250 hp

Displacement

640.8 cu in

Operational

Fuel Capacity

335 gal

Tire Size

37.25R35 E2/E3

Transmission

Max Speed Forward

33 mph

Weights

Total Operating - empty

112413.8 lb

Bowl

Rated Payload

75001.3 lb

Heaped Capacity

31 yd3

Struck Capacity

21.1 yd3

Max Depth of Cut

17.3 in

Width of Cut

11.6 ft in

Dimensions

Overall Length

47.8 ft in

Overall Width

13 ft in

Overall Height

14.1 ft in

Wheelbase

28.8 ft in
