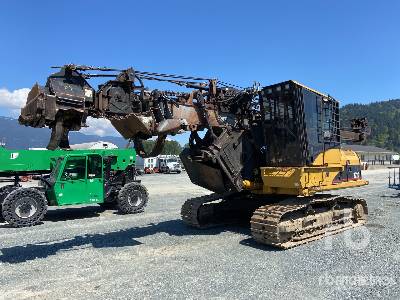

Caterpillar 541 Harvester

Units

Dimensions

Boom

H

Max Reach w/ Head

37.08 ft in

Dimensions

A

Shipping Length - non tilt

44.67 ft in

B

Overall Width

10.92 ft in

C

Height to Top of Cab

11.67 ft in

Undercarriage

D

Track Length

16.06 ft in

E

Ground Clearance

2.92 ft in

F

Track Gauge

8.51 ft in

G

Shoe Size

28 in


Specifications

Engine

Engine Make

2236

Engine Model

C9 ACERT

Net Power

282 hp

Gross Power

305 hp

Power Measured @

2100 rpm

Displacement

537.1 cu in

Operational

Operating Weight

67267.5 lb

Fuel Capacity

312 gal

Hydraulic System Fluid Capacity

97.8 gal

Engine Oil Capacity

10.4 gal

Cooling System Fluid Capacity

16.2 gal

Operating Voltage

24 V

Alternator Supplied Amperage

95 amps

Undercarriage

Track Pitch

8.5 in

Track Length

16.1 ft in

Track Gauge

8.6 ft in

Shoe Size

28 in

Ground Clearance

3 ft in

Boom

Max Reach w/ Head

37.1 ft in

Lift Capacity at Max Reach

9479.9 lb

Dimensions

Shipping Length - non tilt

44.7 ft in

Height to Top of Cab

11.7 ft in

Overall Width

11 ft in
