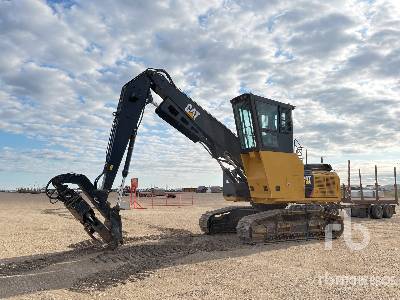

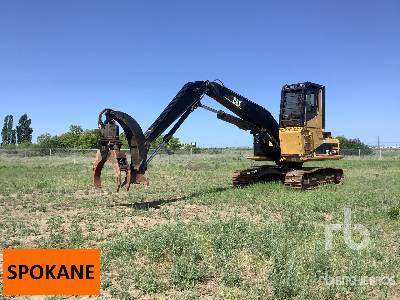

Caterpillar 532 Harvester
Units
Dimensions
Boom
H
Max Reach W/ Head
32.16ft in
Lift Capacity At Max Reach
9038.96lb
Dimensions
A
Shipping Length - Tilt
26.5ft in
B
Overall Width
10.5ft in
C
Height To Top Of Cab
13ft in
Forward Tilt
20degrees
Side Tilt
11degrees
Undercarriage
D
Track Length
16ft in
E
Ground Clearance
2.92ft in
F
Track Gauge
8.51ft in
G
Shoe Size
24.02in
Track Pitch
8.5in
Specifications
Engine
Engine Model
C9 ACERT
Net Power
263hp
Gross Power
284hp
Power Measured @
2100rpm
Displacement
537.1cu in
Operational
Operating Weight
69335.4lb
Fuel Capacity
140.1gal
Hydraulic System Fluid Capacity
79.3gal
Engine Oil Capacity
10.4gal
Cooling System Fluid Capacity
16.2gal
Operating Voltage
24V
Alternator Supplied Amperage
95amps
